M66700WP

Features: • Output logic amplitude: 12V• High-speed rise/fall time tr = tf = 33ns (typical)CL = 1000pF• High output H level voltage: (VCC 1) V minimum• Low output L level voltage: 0.5V maximum• TTL input level• Package with improved allowable power dissipat...

product image

M66700WP Picture
See larger image
SeekIC No. : 004406906 Detail

M66700WP: Features: • Output logic amplitude: 12V• High-speed rise/fall time tr = tf = 33ns (typical)CL = 1000pF• High output H level voltage: (VCC 1) V minimum• Low output L leve...

M66700WP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M66700WP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Output logic amplitude: 12V
• High-speed rise/fall time
         tr = tf = 33ns (typical)
         CL = 1000pF
• High output "H" level voltage: (VCC 1) V minimum
• Low output "L" level voltage: 0.5V maximum
• TTL input level
• Package with improved allowable power dissipation (WP) characteristic


Application

Driving of CCD image sensors in facsimiles, image scanners and photocopiers


Pinout

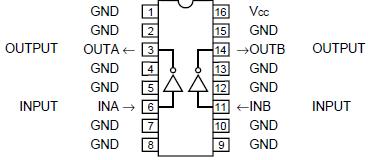

Connection Diagram




Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc Supply voltage

-0.5to+15
V
VI Input voltage
-0.5to+15
V
Vo Output voltage Output: "H"
Vcc
V
Pd Power dissipation For single integrated
circuit; Ta = 25°C (Note 1)
950 (P) /1800 (WP)
mW
Tstg Storage temperature
-65 to +150
°C
Note 1: When Ta is 25°C or higher, conduct derating as follows: 7.7mW/C° (P) /14.4mW/°C (WP).


Description

M66700 Semiconductor Integrated Circuit is built in facsimiles and photocopiers to drive CCD linear image sensor data
transfer clocks at high speeds. Because this IC takes in data on the TTL (Transistor-transistor logic) level, it can be driven  directly by a TTL integrated circuit.
