M66503AGP

Features: • Anode-common LED driving• Constant current output: Set to a value within a range between 0 and 30mA with an external resistor only.Simultaneous lighting available.• Pins (OEA, OEB) provided for forced ON/OFF of LED drive current.• Greater noise margin: Total-inp...

product image

M66503AGP Picture
See larger image
SeekIC No. : 004406897 Detail

M66503AGP: Features: • Anode-common LED driving• Constant current output: Set to a value within a range between 0 and 30mA with an external resistor only.Simultaneous lighting available.• Pin...

M66503AGP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M66503AGP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Anode-common LED driving
• Constant current output: Set to a value within a range between 0 and 30mA with an external resistor only.
Simultaneous lighting available.
• Pins (OEA, OEB) provided for forced ON/OFF of LED drive current.
• Greater noise margin: Total-input Schmitt circuit is employed to deal with longer wire lengths.
• Input/output CMOS compatible
• Serial data output provided (SQ15)
• 5V single power supply
• Pin configuration for easier wiring on printed boa




Application

LED array drivers for display panel and printer. Other various
LED modules.

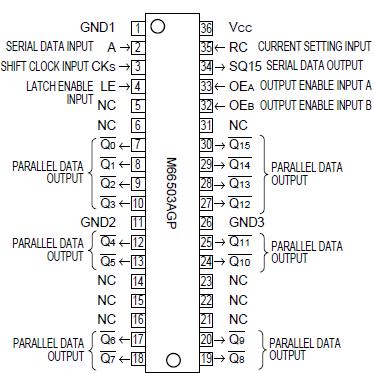

Pinout

Connection Diagram




Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc Supply voltage
0.3 ~ +7.0
V
VI Input voltage
0.3 ~ Vcc + 0.3
V
Vo Output voltage
0.3 ~ + 15.0
V
Io Output
current		 Q0~15
30
mA
SQ15
±10
Pd Power dissipation M66503ASP Measured being mounted Ta=25°C(Note 4)
1.74
W
M66503AGP Measured being mounted Ta=25°C(Note 5)
1.70
Tstg Storage Temperature
-65to+150
Note 4. When 7a 25°C,derate by 13.9mW/°C
Note 5. When 7a 25°C,derate by 13.6mW/°C


Description

The M66503A is a constant current LED driver IC, whose output current is variable. The IC's functions include 16-bit
serial input/parallel output shift register with output latch.

The product uses Bi-CMOS process for highly accurate constant current driving, permitting high-efficiency LED driving
without using a resistor that limits LED current.

Settings for the LED drive current are made by an external resister,thereby ensuring a maximum output current of 30 mA,enough for anode-common LED driving.

Furthermore, the pin configuration of the IC permits easier wiring on a printed board.
