M66282FP

Features: • Memory configuration 8192 words x 8 bits (dynamic memory)• High speed cycle 25 ns (Min.)• High speed access 18 ns (Max.)• Output hold 3 ns (Min.)• Reading and writing operations can be completely carried out independently and asynchronously.• Variabl...

product image

M66282FP Picture
See larger image
SeekIC No. : 004406886 Detail

M66282FP: Features: • Memory configuration 8192 words x 8 bits (dynamic memory)• High speed cycle 25 ns (Min.)• High speed access 18 ns (Max.)• Output hold 3 ns (Min.)• Reading a...

M66282FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M66282FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Memory configuration 8192 words x 8 bits (dynamic memory)
• High speed cycle        25 ns (Min.)
• High speed access     18 ns (Max.)
• Output hold                3 ns (Min.)
• Reading and writing operations can be completely carried out independently and asynchronously.
• Variable length delay bit
• Input/output               TTL direct connection allowable
• Output                        3 states


Application

Digital copying machine, laser beam printer, high speed facsimile,etc.


Pinout

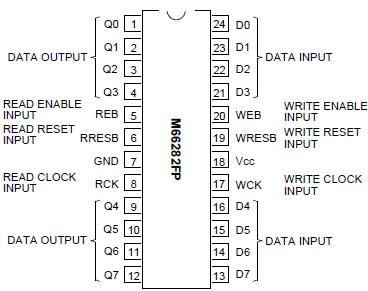

Connection Diagram






Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc Supply voltage
 Value based on the GND pin
-0.3to+4.6
V
VI Input voltage
-0.3toVcc+0.3
V
Vo Output voltage
-0.3toVcc+0.3
V
Pd Power dissipation
300
mW
Tstg Storage temperature
-55 to +150
°C



Description

The M66282FP is high speed line memory that uses high performance silicon gate CMOS process technology and adopts the FIFO (First In First Out) structure consisting of 8192 words x 8 bits.

The M66282FP, performing reading and writing operations at different cycles independently and asynchronously, is optimal for buffer memory to be used between equipment of different data processing speeds.
