Features:

1.Displayable LCD
   •Monochrome STN dot matrix type LCD of up to 76800 dots (equivalent to 320  ×  240 dots)
   •Maximum display duty : 1/240 (set to 240 Line)
                                        : 1/255 (Max)
2.Display memory
   •Built-in 9600-byte(76800-bit)VRAM (equivalent to one screen of 320  ×  240 dots LCD)
   •All addresses of built-in VRAM are externally opened.


Application

•PPC/FAX operation panel,display/operation panel of other OA equipment
•Multi-function/public telephones
•PDA/electronic notebook/information terminal
•Other applications using LCD of 76800 dots or less


Pinout

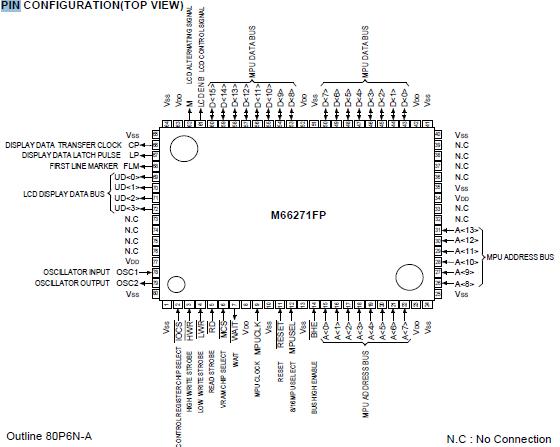

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Units
VDD Supply voltage
-
-0.3to+6.5
V
VI Input voltage
-
-0.2toVDD + 0.3
V
Vo Output voltage
-
-0.5toVDD + 0.3
V
Io Output current
-
±10
mA
Pd Power dissipation
-
600
mW
Tstg Storage temperature
-
-55to+150
°C



Description

The M66271FP is a graphic display-only controller for displaying a high duty dot matrix type LCD which is used widely for PPC,FAX and multi-function telephones.

The M66271FP is capable of controlling a monochrome STN LCD system of up to 320 x 240 dots.

The M66271FP IC has a built-in 9600-byte VRAM as a display data memory.

All of the VRAM addresses are externally opened. Address mapping in the MPU memory space allows direct addressing of all display data from the MPU,thus providing efficient display data processing such as drawing.

The built-in arbiter circuit (cycle steal system) which gives priority to display access allows timing-free access from MPU to VRAM, preventing display screen distortion.

The M66271FP IC provides interface with a 8-bit/16-bit MPU with a READY(WAIT) pin.

And this IC has a function for LCD module built-in system by lessening connect pins between MPU.
