Features:

• High noise margin
             ......................... Schmidt trigger circuit built in CKS and LE
• Switching and mixing function possible with standard Op-Amp.
• Excellent crosstalk characteristic
.            ......................... 90dB [fIN = 3kHz, VIN = 10dBV] (typ.)
• Line backup function provided in case of a power failure
             ............................................... (Effective when RD is "L.")
• Power supply pins for control circuit (VCC) and for crosspoint switch circuit (VCC(switch)) are provided separately.


Application

Line switching with mixing function of telephone and communication equipments.


Pinout

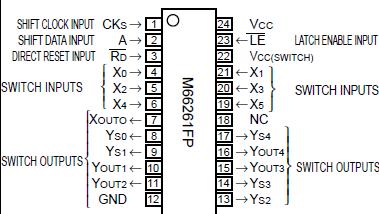

Connection Diagram


Specifications

Symbol

Parameter

Conditions

Rating

Unit

Vcc Supply voltage

-0.5to+7.0
V
VI Input voltage RD, A, CKs, LE
0.5 toVcc+0.5
V
X0 ~ X5         0.5 toVcc+0.5
Vo Output voltage YS0 ~ YS4,
YOUT0 ~ YOUT4
0.5 toVcc+0.5
V
Pd Power dissipation
500
mW
Tstg Storage temperature
-65 to +150
°C



Description

The M66261 is an integrated circuit consisting of a 6× 5 cross point switch capable of selecting 30 analog switches
with mixing registance respectively by serial control inputs.

Using the M66261 with an external standard Op-Amp, 6 analog input signals can be mixed and output to any of 5 outputs freely by serial control inputs.
