M66260FP

Features: • Serial data input type• Switching and mixing function possible with standard Op-Amp.• Switch matrix can be extended to 8* 8 or 8* 12 by com-bining 2 or 3 ICs in parallel.• Excellent crosstalk characteristic .......................... 90 dB [f = 3 kHz, VIN = 10dB...

product image

M66260FP Picture
See larger image
SeekIC No. : 004406879 Detail

M66260FP: Features: • Serial data input type• Switching and mixing function possible with standard Op-Amp.• Switch matrix can be extended to 8* 8 or 8* 12 by com-bining 2 or 3 ICs in paralle...

M66260FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M66260FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Serial data input type
• Switching and mixing function possible with standard Op-Amp.
• Switch matrix can be extended to 8 * 8 or 8 * 12 by com-bining 2 or 3 ICs in parallel.
• Excellent crosstalk characteristic
                  .......................... 90 dB [f = 3 kHz, VIN = 10dBV] (typ.)


Application

Line switching with mixing function of telephone and communication equipments.

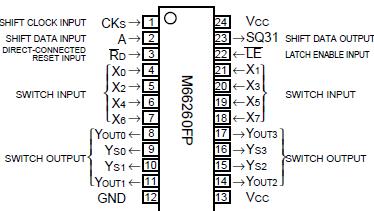

Pinout

Connection Diagram


Specifications

Symbol

Parameter

Conditions

Rating

Unit

Vcc Supply voltage

-0.5to+7.0
V
VI Input voltage RD, A, CKs, LE
0.5 toVcc+0.5
V
X0 ~ X7        0.5 toVcc+0.5
Vo Output voltage YS0 ~ YS3,YOUT0 ~ YOUT3
0.5 toVcc+0.5
V
Pd Power dissipation
500
mW
Tstg Storage temperature
-65 to +150
°C



Description

The M66260 is an integrated circuit consisiting of a 8  × 4 cross point switch capable of selecting 32 analog switches
with mixing registance respectively by serial control inputs.

Using the M66260 with an external standard Op-Amp, 8 analog input signals can be mixed and output to any of 4 outputs freely by serial control inputs.
