Product Details

Description



Features:

• Memory configuration of 8192 words  ×10 bits (dynamic memory)
• High-speed cycle ............................................. 30ns (Min.)
• High-speed access ......................................... 25ns (Max.)
• Output hold ........................................................ 5ns (Min.)
• Fully independent, asynchronous write and read operations
• Variable length delay bit
• Output .................................................................... 3 states


Application

Digital photocopiers, high-speed facsimile, laser beam printers.


Pinout

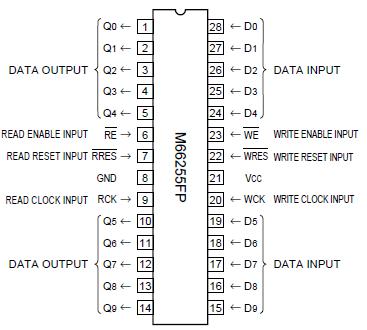

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc Supply voltage
 A value based on GND pin
-0.5to+7.0
V
VI Input voltage
-0.5toVcc+0.5
V
Vo Output voltage
-0.5toVcc+0.5
V
Pd Power dissipation Ta=25 °C
825(Note 1)
mW
Tstg Storage temperature
-65 to +150
°C
Note 1: Ta 40°C are derated at 9.7mW/°C


Description

The M66255FP is a high-speed line memory with a FIFO(First In First Out) structure of 8192-word  ×10-bit configuration which uses high-performance silicon gate CMOS process technology.

The M66255FP has separate clock, enable and reset signals for write and read, and is most suitable as a buffer memory between devices with different data processing throughput.
