Features:

• Sync clock output frequency range: 1/1, 1/2, 1/4, 1/8, 1/16,
                                                          1/32 of 25 to 50MHz
• Sync accuracy (jitter): ±3ns
• Trigger input: Polarity selectable
• One-shot pulse output: Polarity and width selectable
• 5V power supply


Application

Pixel clock generator


Pinout

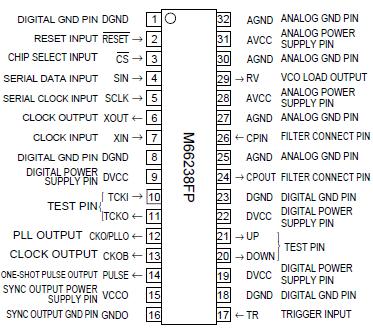

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc Supply voltage
-0.5 to +7.0
V
Vi Input voltage
-0.5 to Vcc+0.5
V
Vo Output voltage
-0.5 to Vcc+0.5
V
Pd Power dissipation When board is mounted
650
mW
Tstg Storage temperature
-65 to +150
°C

Remarks: All voltages adopt the GND pin of the circuit as the base (0V) and absolute values are displayed for maximum and minimum values.




Description

The M66238 is a LSI that incorporates a PLL synthesizer and a sync clock generator in it. The PLL synthesizer covers the range of 25MHz to 50MHz at the minimum steps of 3kHz.

The sync circuit of M66238FP outputs a clock and a one-shot pulse which are synchronized with an external trigger signal. Setting a dividing ratio allows acquisition of sync clock outputs within the range of 0.78MHz to 25MHz.
