M66235FP

Features: • 5V single power supply (5V ±5%)• Frequency band: 25 ~ 52MHz• Synchronizing precision (jitter): ±3ns• Output types(1) Output of the same frequency as input clock, and its in- version(2) 1/2 divider clock output and its inversion(3) One-shot pulse output(4) Contin...

product image

M66235FP Picture
See larger image
SeekIC No. : 004406867 Detail

M66235FP: Features: • 5V single power supply (5V ±5%)• Frequency band: 25 ~ 52MHz• Synchronizing precision (jitter): ±3ns• Output types(1) Output of the same frequency as input clock, ...

M66235FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M66235FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 5V single power supply (5V ±5%)
• Frequency band: 25 ~ 52MHz
• Synchronizing precision (jitter): ±3ns
• Output types
(1) Output of the same frequency as input clock, and its in- version
(2) 1/2 divider clock output and its inversion
(3) One-shot pulse output
(4) Continuous clock output
• Noise in the positive direction to trigger input is removed by built-in noise killer circuit


Application

·Clock phase control for horizontal synchronization


Pinout

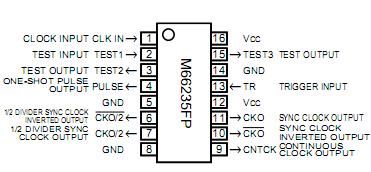

Connection Diagram




Specifications

Symbol Parameter Conditions Ratings Unit
VCC Supply voltage   0.5 ~ +7.0 V
VI Input voltage 0.5 ~ VCC +0.5 V
VO Output voltage 0.5 ~ VCC +0.5 V
Pd Power dissipation When mounted 750 mW
Tstg Storage temperature   65 ~ 150



Description

M66235 is produced using the silicon gate CMOS process. Itis able to output clock input signal in sync with optional exter-nal trigger input signal.

The M66235 features excellent synchronizing precision (jitter) over awide frequency band range.
