M66222SP

Features: • Memory configuration of 128 × 8 bits × 2 memory areas• High-speed access, address access time 40ns (typ.)• Complete asynchronous accessibility from ports A and B• Fixed read/write access ports for memory• Completely static operation• Low power dissip...

product image

M66222SP Picture
See larger image
SeekIC No. : 004406866 Detail

M66222SP: Features: • Memory configuration of 128 × 8 bits × 2 memory areas• High-speed access, address access time 40ns (typ.)• Complete asynchronous accessibility from ports A and B•...

M66222SP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M66222SP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Memory configuration of 128 × 8 bits ×  2 memory areas
• High-speed access, address access time 40ns (typ.)
• Complete asynchronous accessibility from ports A and B
• Fixed read/write access ports for memory
• Completely static operation
• Low power dissipation CMOS design
• 5V single power supply
• TTL direct-coupled I/O
• 3-state output for I/O pins


Application

Inter-MCU data transfer memory, communication buffer memory

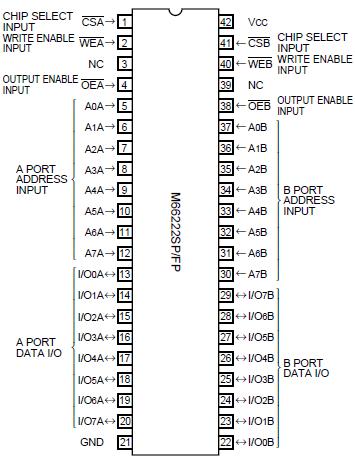

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Rating
Unit
Vcc Supply voltage
 When defining GND pin as a
reference.
-0.3to+7.0
V
VI Input voltage
0.3 toVcc+0.3
V
Vo Output voltage
0 toVcc
V
Pd Maximum power dissipation Ta=25 °C
700
mW
Tstg Storage temperature
-65 to +150
°C



Description

The M66222 is a mail box that incorporates two complete CMOS shared memory cells of 128×8-bit configuration using highperformance silicon gate CMOS process technology, and are equipped with two access ports of A and B.
Access ports A and B are equipped with independent addresses CS , WE and OE control pins and I/O pins to allow independent and asynchronous read/write operations individually. This product exclusively performs a write operation from A port and a read operation from B port for one memory, and a read operation from A port and a write operation from B port for the other memory.
