M66014FP

Features: • Compatible with general-purpose 8-bit microprocessor busses• TTL level input (one microcomputer side)• Interrupt output• Schmitt input (RESET , CS , SIN )• Pin arrangement is fully compatible with M66011FP• Low power dissipation• Wide operating...

product image

M66014FP Picture
See larger image
SeekIC No. : 004406860 Detail

M66014FP: Features: • Compatible with general-purpose 8-bit microprocessor busses• TTL level input (one microcomputer side)• Interrupt output• Schmitt input (RESET , CS , SIN )• ...

M66014FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M66014FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compatible with general-purpose 8-bit microprocessor busses
• TTL level input (one microcomputer side)
• Interrupt output
• Schmitt input (RESET , CS , SIN )
• Pin arrangement is fully compatible with M66011FP
• Low power dissipation
• Wide operating temperature range (Ta = 20 to 75°C)


Application

Microcomputer I/O port extension, etc.


Pinout

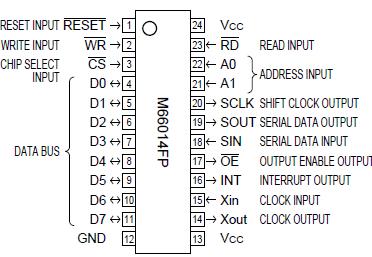

Connection Diagram


Description

M66014 Semiconductor Integrated Circuit is a serial bus controller.It converts 2-byte parallel data that arrives from microcomputer into serial and outputs it to serial bus. It also converts serial data input from serial bus into parallel and outputs it to microcomputer.

The M66014 is used for the extension of microcomputer I/O ports and two-way communication with peripheral equipment connected with serial buses.
