M66011FP

Features: • Compatible with general-purpose 8-bit microprocessor busses • TTL level input (one microcomputer side) • Interrupt output • Schmitt input (RESET, CS, SIN) • Low power dissipation • Wide operating temperature range (Ta = 20 to 75°C)ApplicationMicrocom...

product image

M66011FP Picture
See larger image
SeekIC No. : 004406858 Detail

M66011FP: Features: • Compatible with general-purpose 8-bit microprocessor busses • TTL level input (one microcomputer side) • Interrupt output • Schmitt input (RESET, CS, SIN) •...

M66011FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M66011FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compatible with general-purpose 8-bit microprocessor busses
• TTL level input (one microcomputer side)
• Interrupt output
• Schmitt input (RESET, CS, SIN)
• Low power dissipation
• Wide operating temperature range (Ta = 20 to 75°C)




Application

Microcomputer I/O port extension, etc.


Pinout

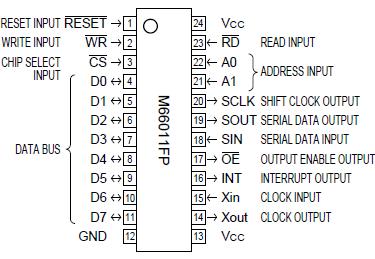

Connection Diagram


Specifications

Symbol
Parameter
Ratings
Units
Vcc Supply voltage
-0.5to+7.0
V
VI Input voltage
-0.2toVCC + 0.5
V
Vo Output voltage
-0.5toVCC + 0.5
V
Pd Power dissipation
500
mW
Tstg Storage temperature
-60to150
°C



Description

M66011 Semiconductor Integrated Circuit is a serial bus controller.It converts 2-byte parallel data that arrives from microcomputer into serial and outputs it to serial bus. It also converts serial data input from serial bus into parallel and outputs it to microcomputer.

The M66011 is used for the extension of microcomputer I/O ports and two-way communication with peripheral equipment connected with serial buses.
