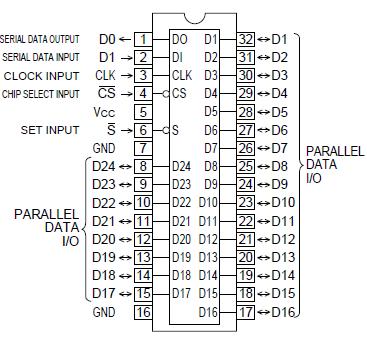

M66010FP

• Two-way serial data communication with MCU
• Serial data intake possible during parallel-to-serial conversion
• Parallel input/output switchable according to the bit
• Low power dissipation: 100  W maximum per package
                                       (VCC =5V, Ta = 25°C, quiescent)
• Schmidt input (DI, CLK, S,CS)
• Open drain output (DO, D1 thru D24)
• Parallel data input and output (D1 thru D24)
• Wide operating supply voltage range (VCC = 2V ~ 6V)

M66010 Semiconductor Integrated Circuit inputs 24-bit data in series and outputs it in parallel and vice versa, using shift register function.

Equipped with 2 independent shift registers, one for serial-toparallel,the other for parallel-to-serial, this IC is able to read serial input data into a shift register while converting data from parallel to serial. Parallel input/output pins are set to input or output according to the bit.

The M66010 is useful in a wide range of applications, such as MCU (micro controller unit) input/output port extension and serial bus system data communication.
