Product Details

Description



Features:

• Has 5 bits for address setting
• Connected to microcomputer via 4 pins (EN,CLK, DI and DO)
• Input/output setting possible by the bit
• Schmitt input (RESET, EN and CLK)
• Wide operating temperature range (Ta = 20°C to 75°C)


Application

Microcomputer I/O port extension, etc.

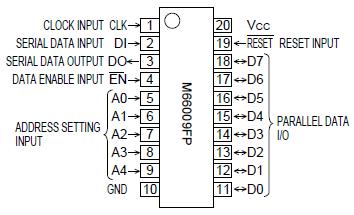

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc Supply voltage

-0.5to +7.0
V
VI Input voltage
-0.5toVcc+0.5
V
Vo Output voltage DO,D0toD7
-0.5toVcc+0.5
V
Pd Power dissipation
500
mW
Tstg Storage temperature
-65 to +150
°C



Description

M66009 silicon gate CMOS (complementary metal oxide semiconductor) integrated circuit converts 8-bit data from serial to parallel and vice versa.

This IC has 5 address setting bits, which enable users to set a distinctive address.

This IC offers a wide range of applications, such as for microcomputer input/output port extension.
