Features:

• Built in 5×7-dot segment character ROM(160 characters based on JIS-C-6220. Customization is possible.)
• Built in character RAM for user definition (16 characters)
• Display digit length can be changed. (from 9 to 16 digits)
• One-digit display cycle setting can be changed. (2 cycles)
• Dimmer is adjustable. (8 grades)
• Cursor display ON or OFF is selectable. (SEG35 output)
• Built in automatic display digit increment function
• Auto increment of display digit
• Built in simultaneous all-digit display ON/OFF command
• Connection to MCU by three signal lines, CS, SCK and SDATA
• Instruction execution with one byte*
• 2 general purpose output ports
• Positive supply voltage VCC=5V ± 10%
• Pull-down voltage VP=VCC-40V typ.
                                      VCC-45V max. (peak)
  *: Except for character RAM setting


Application

AV equipments, vacuum fluorescent display controller for POS system, etc.


Pinout

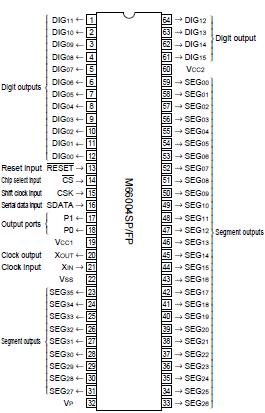

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Units
Vcc Supply voltage VCC1,VCC2
-
-0.3to+7
V
Vp Pull-down voltage (Note 3)
Vcc-45toVcc+0.3
V
VI Input voltage
-
-0.3toVcc + 0.3
V
Vo Output voltage XOUT,P0,P1
-0.3toVcc + 0.3
V
Pd Maximum Power dissipation SP Any external circuits are
not connected to the IC.
Ta=25°C (Note 4)
1.6
W
FP
The IC is mounted on a
board. Ta=25°C (Note 5)
1.4
Tstg Storage temperature
-
-65to150
°C

Notes 3: Frequency of pulse waveform exceeding VCC-40V:450s or above, pulse width: 30ms or below, output load: CL200pF
           4: When Ta is 25°C or above, derating (12.8mW/°C) should be conducted.
           5: When Ta is 25°C or above, derating (11.2mW/°C) should be conducted.




Description

The M66004 is a 16-digit 5×7-segment vacuum fluorescent display (VFD) controller using the silicon gate CMOS technology.

M66004 contains 160 ROM characters and 16 user-defined RAM characters and receives display character codes and various
commands from MCU to control VFD.
