M65575FP

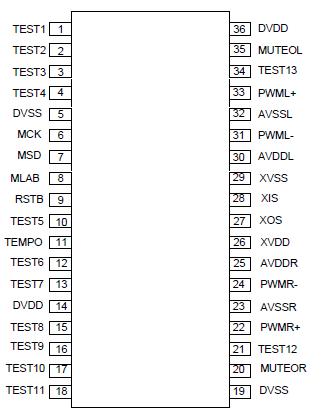

[MUSIC SOURCE]                 FEATURES
Compression algorithm         4 Bit ADPCM
Maximum music sources        256
Sampling frequency              4 KHz/8 KHz/16 KHz/32 KHz
Pronunciation counts            3 tracks (Monaural ; at the same time)
[Rhythm]
Maximum rhythm patterns    64 patterns
Tempo                                  60 - 240 step 1
Resolution ratio                    16 Beat
[System]
Power Supply                       3.3V Single power supply
Output                                 Stereo(L/R) Capable of both setting GAIN and Attenuate
                                            ATT ;0 dB ,-6 dB,-12 dB,-18 dB,-  24dB,-30 dB,-36 dB, -ÅádB
                                            GAIN;6.0 dB,5.5 dB,4.9 dB,4.2 dB,3.5 dB,2.8 dB,1.9 dB,1.0dB
Pan pot                                Capable of set each music sources of rhythm patterns (11steps)
Level                                    Capable of set each music sources of rhythm patterns
                                             (0dB,-6.0dB,-9.3dB,-12dB,-15.3dB,-21.3dB, -dB)
Music sources ROM size        1.5M Bit
Rhythm patterns ROM size    96K Bit
MCU I/F                                 4 line serial bus interface (clock.data,ratch,read/write)
MCU Commands                    Tempo, Rhythm pattern setting, ATT setting, Start, Repeat start,Stop, PAD commands
[Internal function]
Fs conversion filter               Input : 4 KHz/8 KHz/16 KHz/32 KHz Output : 32KHz
D/A converter                       D/A converter 1 Bit converter (PWM output)

The M65575FP is suitable for rhythm phrase reproduce LSI thanks to the internal music sources and rhythm patterns.

The M65575FP contains music sources which maximum counts are 256, also contains rhythm patterns which maximum counts are 64.
