Product Details

Description

Features:

`Three package configurations (P, FP, and KP)
`Medium breakdown voltage (BV_CEO35V)
`Synchronizing current (I_C(max) = 300mA)
`Low output saturation voltage
`Wide operating temperature range (Ta = 40 to +85°C)

Application

Driving of digit drives of indication elements (LEDs and lamps) with small signals

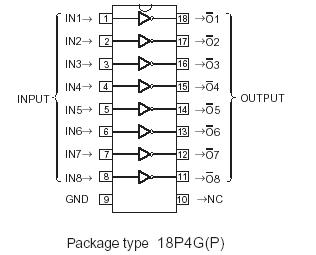

Pinout

Specifications

Symbol	Parameter	Conditions		Ratings	Unit
VCEO IC VI Pd Topr Tstg	Collector-emitter voltage Collector current Input voltage Power dissipation Operating temperature Storage temperature	Output, H Current per circuit output, L		0.5 ~ +35 300 0.5 ~ +35 1.79 1.10 0.68 40 ~ +85 55 ~ +125	V mA V W °C °C °C
		Ta= 25, when mounted on board	M63807P M63807FP M63807KP

Description

M63807P/FP/KP are eight-circuit Single transistor arrays. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
