M63805FP

Features: `Three package configurations (P, FP, and KP)`Medium breakdown voltage (BVCEO35V)`Synchronizing current (I C(max) = 300mA)`With zener diodes`Low output saturation voltage`Wide operating temperature range (Ta = 40 to +85°C)ApplicationDriving of digit drives of indication elements (LEDs an...

product image

M63805FP Picture
See larger image
SeekIC No. : 004406708 Detail

M63805FP: Features: `Three package configurations (P, FP, and KP)`Medium breakdown voltage (BVCEO35V)`Synchronizing current (I C(max) = 300mA)`With zener diodes`Low output saturation voltage`Wide operating te...

M63805FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M63805FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Three package configurations (P, FP, and KP)
`Medium breakdown voltage (BVCEO35V)
`Synchronizing current (I C(max) = 300mA)
`With zener diodes
`Low output saturation voltage
`Wide operating temperature range (Ta = 40 to +85°C)




Application

Driving of digit drives of indication elements (LEDs and lamps) with small signals

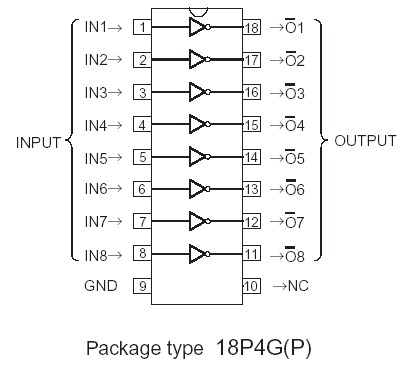

Pinout






Specifications

Ratings Symbol
Parameter
Conditions
Unit
VCEO Collector-emitter voltage
Output, H
0.5 ~ +35
V
IC Collector current
Current per circuit output, L
300
mA
VI Input voltage
0.5 ~ +35
V
Pd Power dissipation
Ta = 25°C, when mounted
on board
M63805P
M63805FP
M63805KP
1.79
1.10
0.68
W
Topr Operating temperature
40 ~ +85
°C
Tstg Storage temperature
55 ~ +125
°C





Description

M63805P/FP/KP are eight-circuit Single transistor arrays. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
