M63804FP

Features: `Four package configurations (P, FP, GP and KP)`Medium breakdown voltage (BVCEO 35V)`Synchronizing current (IC(max) = 300mA)`Low output saturation voltage`Wide operating temperature range (Ta = 40 to +85°C)ApplicationDriving of digit drives of indication elements (LEDs and lamps) with sm...

product image

M63804FP Picture
See larger image
SeekIC No. : 004406704 Detail

M63804FP: Features: `Four package configurations (P, FP, GP and KP)`Medium breakdown voltage (BVCEO 35V)`Synchronizing current (IC(max) = 300mA)`Low output saturation voltage`Wide operating temperature range ...

M63804FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M63804FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Four package configurations (P, FP, GP and KP)
`Medium breakdown voltage (BVCEO 35V)
`Synchronizing current (IC(max) = 300mA)
`Low output saturation voltage
`Wide operating temperature range (Ta = 40 to +85°C)


Application

Driving of digit drives of indication elements (LEDs and lamps) with small signals


Pinout

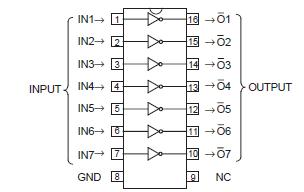

Connection Diagram


Specifications

Symbol Parameter Test condition Ratings Unit
VCEO Supply Voltage Output, H 0.5 ~ +35 V
IC Output Sink Current Current per circuit output, L 300 mA
VI Input voltage Output with constant current load 0.5 ~ +35 V
Pd Power Dissipation Ta = 25°C, when mounted
on board		 M63804P


 1.47 W
M63804FP 1.00
M63804GP 0.80
M63804KP 0.78
Topr Operating Temperature 40 ~ +85 °C
Tstg Storage Temperature 55 ~ +125 °C



Description

M63804P, M63804FP, M63804GP and M64804KP are seven-circuit Singe transistor arrays. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low inputcurrent supply.
