M63151FP

Features: • Power-supply voltage (max.): 30 V• Output current (max.): 2.5 A• RDS (typ.): 140 (total of the upper and lower DMOS FETs)• Built-in chip circuit for preventing through current in commutation• Built-in chip comparator for current detection• Buil-in c...

product image

M63151FP Picture
See larger image
SeekIC No. : 004406694 Detail

M63151FP: Features: • Power-supply voltage (max.): 30 V• Output current (max.): 2.5 A• RDS (typ.): 140 (total of the upper and lower DMOS FETs)• Built-in chip circuit for preventing t...

M63151FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M63151FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power-supply voltage (max.): 30 V
• Output current (max.): 2.5 A
• RDS (typ.): 140 (total of the upper and lower DMOS FETs)
• Built-in chip circuit for preventing through current in commutation
• Built-in chip comparator for current detection
• Buil-in chip overheating protection circuit
• Built-in chip motor-lock protection circuit


Application

OA equipment such as LBPs, copiers, and fax machines


Pinout

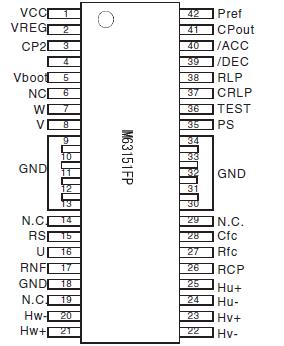

Connection Diagram


Specifications

No.
Symbol
parameter
Rated Value
Unit
Remarks
1
Vcc
 Power-supply voltage
30
V
2
Ipeak
 Output current
3.0
A
3
VHA
 Hall-sensor amp. differential input range

4.5
V
4
Vin
 Voltage on input pins
-0.3to7
V
/ ACC, / DEC, / PS, Pref
5
Pd
 Allowable dissipation
2.5
W
During start-up at Ta = 60°C,
with the device mounted on an iron
substrate
6
K
 Parameter for thermal derating
25
mW / °C
7
Tj
 Conjunction temperature
150
8
Ta
 Ambient temperature during operation
-20to+75
9
Tstg
 Temperature during storage
-40to125



Description

The M63151FP is a driver and controller for use with three-phase brushless motor. A DMOS element with high withstand voltage and low levels of switching loss is used on each output. Acceleration and deceleration inputs are
operable at TTL levels.
