Product Details

Description



Application

CD-ROM, DVD, DVD-ROM, DVD-RAM ,Optical disc related system,etc

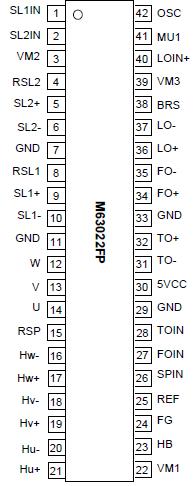

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Rating
Unit
5VCC
 5V power supply Focus and Tracking power supply
7
V
VM1
 Motor power supply 1 Spindle power supply
15
V
VM2
 Motor power supply 2 Slide power supply
15
V
VM3
 Motor power supply 3 Loading power supply
15
V
IoA
 Motor Output Current A Focus,Tracking and Loading output current Note1
1.0
A
IoB
 Motor Output Current B

Spindle output current Note1
1.5
A
IoC
 Motor Output Current C Slide output current Note1
0.5
A
Vin
 Maximum input voltage
of terminals		 MU1,Hw-,Hw+,Hv-,Hv+,Hu-,Hu+,REF,SPIN,
BRS,TOIN, FOIN, OSC,SLIN1,SLIN2,LOIN+
0to5VCC
V
Pt
 Power dissipation Free Air and on the grass epoxy board 70mmX70mmX1.6mm
2.6
W
K
Thermal derating Free Air and on the grass epoxy board 70mmX70mmX1.6mm
20.8
mW/
Tj
 Junction temperature
150
Topr
 Operating temperature
-20to+75
Tstg
 Storage temperature
-40to+150
*note1 ; The ICs must be operated within the Pt (power dissipation) or the area of safety operation.


Description

This M63022FP is 1 chip driver IC for spindle motor and 5 channel actuators. All of the motor and actuator of optical disk drive system (CD-ROM etc.) can be drived by only this IC.

This M63022FP IC has a direct PWM control system for Spindle and Slide channels drive due to reducing IC power dissipation.

This IC has three voltage supply terminals (for Spindle,Slide,Focus/Tracking and Loading) , and three voltage supply can be set separately.

Further more this M63022FP IC has short braking select function,FG amplifier,thermal shut down circuit, standby circuit, reverse rotation detect circuit.
