M62781GP

Features: • Few external parts• Low threshold operating voltage (Supply voltage to keep low-state at low supply voltage) .0.65V(TYP.) at RL=22k• Wide supply voltage range .... 1.5to 7.0V• Sudden change in power supply has minimal effect on the ICs• Wide application ra...

product image

M62781GP Picture
See larger image
SeekIC No. : 004406674 Detail

M62781GP: Features: • Few external parts• Low threshold operating voltage (Supply voltage to keep low-state at low supply voltage) .0.65V(TYP.) at RL=22k• Wide supply voltage range .... 1.5t...

M62781GP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M62781GP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Few external parts
• Low threshold operating voltage (Supply voltage to keep low-state at low supply voltage) .0.65V(TYP.) at    RL=22k
• Wide supply voltage range .... 1.5to 7.0V
• Sudden change in power supply has minimal effect on the ICs
• Wide application range
• Extra small 3-pin package (3-pin SOP)
• Built-in long delay time




Application

• Reset pulse generation for almost all logic circuits
• Battery checking, level detecting, waveform shaping circuits
• Delayed waveform generator
• Switching circuit to a back-up power supply
• DC/DC converter
• Over voltage protection circuit

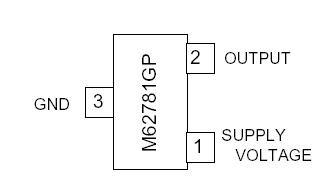

Pinout

Connection Diagram


Specifications

Symbol Parameter Test condition Ratings Unit
Vcc Supply Voltage

 8 V
Isink Output Sink Current

 6 mA
VO Output Voltage Output with open collector 8 V
Pd Power Dissipation 3pin SOP(SOT-23) 200 mW
K Terminal derating Ta25°C 3pin SOP 2 mW/°C
Topr Operating Temperature

 -30 to +85 °C
Tstg Storage Temperature

 -40 to +125 °C



Description

The M62781GP is a voltage threshold detector designed for detection of a supply voltage and generation of a system reset pulse for almost all logic circuits such as microprocessor.

The M62781GP also has extensive applications including battery checking, level detecting and waveform shaping circuits.
