Product Details

Description

Features:

Upper compatible for M62460FP and less external parts than M62460FP.
Includes all functions requires for Dolby Pro Logic Surround.
•Adaptive Matrix.
•Noise Sequencer by digital noise source and switched capacitor filter.
•Center Mode Control(Wide/Normal/PHANTOM/OFF).
•Modified Dolby B Type Noise Reduction.
•4ch/3ch Stereo Selectable.
•Digital Delay: 15.4, 20, 28.6ms for Dolby Pro Logic Surround.
C/Sch Trimmer: 0 to -31dB/1dB Step.
Digital Space Surround Mode: Disco/Hall/Live mode and 5 delay time positions.
Digital Echo function for KARAOKE: (Short echo) Delay time=147.5ms, (Long echo) Delay time=196.6ms.
BY-PASS Mode: Input signal through output.

Pinout

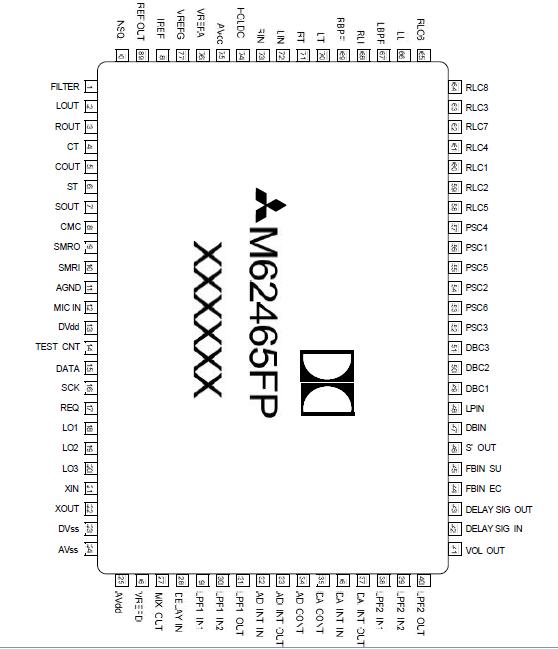

Connection Diagram

Specifications

Symbol	Parameter	Test conditions	Limits	Unit
V_CC	Supply voltage		10.5	V
V_DD	Supply voltage		6.5	V
P_d	Power dissipation	standard board	1.37	W
K	Thermal derating	Ta25ºC	13.7	mW/ºC
T_opr	Operating temperature		-20 to +75	°C
T_stg	Storage temperature		-40 to +125	°C

Description

The M62465FP is a single chip LSI supporting the Dolby Prolgic surround.This LSI contains all functions necessary for Dolby Pro Logic surround. In addition,it has Digtal Space Surround functions (Disco,Hall,Live mode etc.) and echo function for karaoke.

Note:Use of this LSI requires the license of Dolby Laboratories Licensing Corporation
