M62460FP

PinoutSpecifications Symbol Parameter Test conditions Limits Unit Vcc Supply voltage 10.5 V VDD 6.5 V Pd Power dissipation standard board 1.37 W K Thermal derating Ta25°C 13.7 mW/°C Topr Operating temperature ...

product image

M62460FP Picture
See larger image
SeekIC No. : 004406619 Detail

M62460FP: PinoutSpecifications Symbol Parameter Test conditions Limits Unit Vcc Supply voltage 10.5 V VDD 6.5 V Pd Power dissipation standard board ...

M62460FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M62460FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

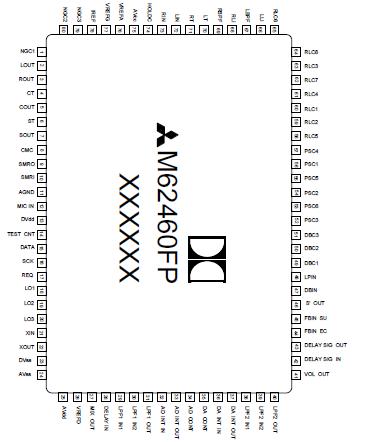

Connection Diagram


Specifications

Symbol
Parameter
Test conditions
Limits
Unit
Vcc
 Supply voltage
10.5
V
VDD
6.5
V
Pd
 Power dissipation
standard board
1.37
W
K
 Thermal derating
Ta25°C
13.7
mW/°C
Topr
 Operating temperature
-20~+75
°C
Tstg
 Storage temperature
-40~+125
°C



Description

The M62460FP is a"super"single chip LSI supporting the Dolby Pro Logic surround.This LSI contains all sorts of functions including delay circuit function.In addition,it has Digital Space Surround functions (Disco,Hall,Live mode etc.) and echo function for karaoke.

Note:Use of this LSI requires the license of Dolby Laboratories Licensing Corporation
