Product Details

Description

Features:

Be able to operate with serial data from microcomputer
Can be gaining control of 7-band (±10dB and 2dB steps)
Power supply is single power supply or ± power supplies
Low nose V^NO (flat)=5Vrms (typ)<JIS-A>
Low distortion THD=0.005% (typ)<HPF400Hz, LPF30kHz>

Pinout

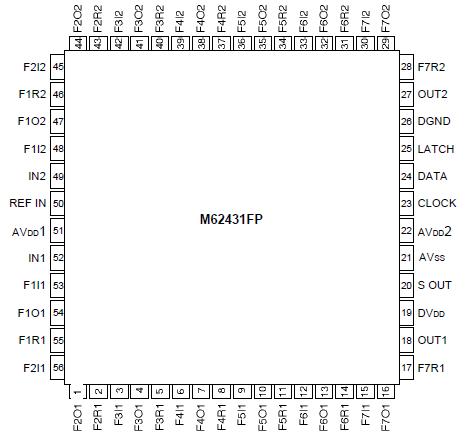

Connection Diagram

Specifications

Symbol	Parameter	conditions	Ratings	Unit
V_cc	Supply voltage		-0.3~+7.0	V
V_DD	Upper reference voltage of D-A converter		-0.3~+7.0	V
V_IN	Input voltage		-0.3~VCC+0.3	V
V_o	Output voltage		-0.3~VCC+0.3	V
P_d	Power dissipation		150	mW
T_opr	Operating temperature		-20~+85	°C
T_stg	Storage tempareture		-55~+150	°C

Description

The M62431FP is 2-channel 7-band graphic equalizer IC developed for home audio, car audio sets, etc. This IC can be control by serial data from microcomputer.
