M62291GP

Features: `Wide operation power supply voltage range -- 6V to 15V(Vcc=12V typ.)`Low power consumption -- 570A max.(Vcc=12V typ., at no load)`Built-in oscillator without peripheral components (110KHz typ.)`Built-in overcurrent protection circuit`Ultrasmall 5-pin SOT23 packageApplicationLocalized po...

product image

M62291GP Picture
See larger image
SeekIC No. : 004406522 Detail

M62291GP: Features: `Wide operation power supply voltage range -- 6V to 15V(Vcc=12V typ.)`Low power consumption -- 570A max.(Vcc=12V typ., at no load)`Built-in oscillator without peripheral components (110KHz...

M62291GP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M62291GP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Wide operation power supply voltage range -- 6V to 15V(Vcc=12V typ.)
`Low power consumption -- 570A max.(Vcc=12V typ., at no load)
`Built-in oscillator without peripheral components (110KHz typ.)
`Built-in overcurrent protection circuit
`Ultrasmall 5-pin SOT23 package


Application

Localized power supply for audio, portable equipments,and general electric products

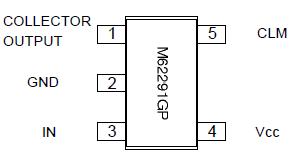

Pinout

Connection Diagram


Specifications

ltem
Symbol
Condition
Ratings
Units
Power supply voltage
Vcc
16
V
Output current
Io
100
mA
Power dissipation
Pd
Ta=25ºC
200
mW
Thermal derating ratio
Kheta
Ta>25ºC
2.0
mW/ºC
Operating ambient temperature
Topr
-20to+85
Storage temperature
Tstg
-40to+125



Description

M62291GP is an integrated circuit designed as 5V fixed output voltage general purpose DC-DC converter.

IM62291GP ntegrating peripheral components in ultrasmall 5-pin SOT23 package allows for simplified external circuit and compact low cost design.This IC is applicable to portable equipments due to low circuit current 570uA(typ.)

Especially this M62291GP is most suitable for localized power source such as audio equipments, and so on as converter from 12 to 5V system.
