Features:

• Designed for low voltage(3V)operation.
• Built-in CR oscillator is used for internal logic.
• Built-in D/A converter and shift-resister circuits to maintain the peak voltage of battery.
• Built-in Main output SW and discharge drive circuits.
• Built-in LED drive circuits for displaying the status of the power supply and charging/discharging.
• Built-in System Reset circuit for detecting the power supply voltage.
• Built-in initialization timer and safety timer enable -V error detection and over-charging.
• Built-in temperature detection circuit for the Ni-MH battery
• Built-in voltage and current control circuit which enables feedback to the primary side of the SMPS.
• Built-in protective functions including detection of over-voltage in charge mode and over-current in adapter mode, and others.




Application

General electronic battery charger for VCR and camera in one unit, handheld telephones, etc.


Pinout

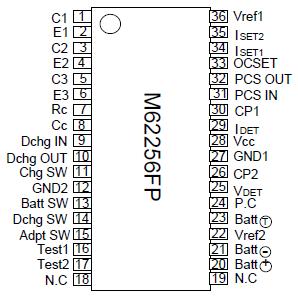

Connection Diagram


Specifications

ltems
Symbols
Condition
Ratings
Unit
Power supply voltage
Vcc
16
V
Chgon terminal drive current
IChgon
50
mA
Dchgout terminal drive current
IDchg
-5
mA
LED drive current
IC1~C3
20
mA
P.C drive current
IP.C
5
mA
Vref1 output current
Iref1
-1
mA
Vref2 output current
Iref2
-1
mA
Power dissipation
Pd
650
mW
Thermal derating ratio
K
Ta=25°C
6.5
mW/°C
Operating temperature
Topr
Ta>25°C
-20to+75
Storage temperature
Tstg
-40to+125
(Notes)
       Polarity of current:
            The direction of current flowing into the IC is considered positive(+).
            The direction of current flowing out of the IC is considered negative(-).
            The voltage impressed on the open collector output terminal should be the absolute maximum voltage of the power supply.
            The voltage difference between the negative terminal of the battery and the GND terminal should be 0V~0.6V.


Description

M62256FP is a semiconductor integrated circuit designed to control the battery charger. This IC controls not only all the time sequence needed for battery charging,but also gives full support for detection of battery temperature,protection over current and voltage,and safety timer,etc. It is also a simple matter to charge Ni-Cd,Ni-MH batteries by adding a small peripheral components to this IC.

This M62256FP IC has a feedback controlling of the charge current and the output voltage.
