M62216FP

Features: • Pre-Drive type PWM output (Pre-Drive only)• Low voltage Operation................................. VIN=0.9V min.• Low Current Dissipation................................ IB=850A typ.• Pre-Drive output current can be adjusted• Built-in ON/OFF Function.........

product image

M62216FP Picture
See larger image
SeekIC No. : 004406496 Detail

M62216FP: Features: • Pre-Drive type PWM output (Pre-Drive only)• Low voltage Operation................................. VIN=0.9V min.• Low Current Dissipation..................................

M62216FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M62216FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Pre-Drive type PWM output (Pre-Drive only)
• Low voltage Operation ................................. VIN=0.9V min.
• Low Current Dissipation................................ IB=850A typ.
• Pre-Drive output current can be adjusted
• Built-in ON/OFF Function.......................... IB(OFF)=35A typ.
• Application for STEP-DOWN Converter can be used


Application

DC-DC Converter for portable sets of battery used


Pinout

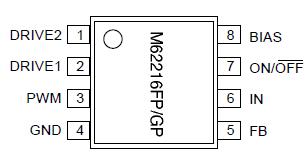

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VIN Input Voltage
15.5
V
VBIAS Bias Terminal Supply Voltage
15.5
V
VDRIVE1 Drive1 Terminal Supply Voltage
15.5
V
VDRIVE2 Drive2 Terminal Supply Voltage
15.5
V
IDRIVE1 Drive1 Terminal Input Current
100
mA
IDRIVE2 Drive2 Terminal Input Current
10
mA
Pd Power Dissipation Ta =25
440 (FP) 250 (GP)
mW
Topr Operating temperature
-20 ~+85
Tstg Storage temperature
-55 ~ +125



Description

The M62216FP is designed as low voltage operation STEP-UP DC-DC converter.

This IC can operate very low input voltage (over 0.9V) and low power dissipation (circuit current is less than 850A).
So, this IC suitable for power supply of portable system that using low voltage battery (DRY battery, rechargeable battery).
