Features:

• Bi-CMOS process realizes a configuration of low current dissipating circuits.
  Circuit current
      ICC=3A (Typ. , normal mode, VCC=3.0V)
      ICC=1A (Typ. , backup mode, VCC=2.5V)
• Two-step detection of supply voltage
    Detection voltage in normal mode VS=2.7V (Typ.)
    Detection voltage in backup mode VBATT=2.0V (Typ.)
• Two outputs
    Reset output (RESET) : Output of compulsive reset signal
    Interruption output (INT) : Output of interruption signal
• Output forms
    CMOS output : M62015
    Open drain : M62016


Application

Prevention of malfunction of microcomputer systems in electronic,equipment such as OA equipment, industrial equipment, and homeuse electronic appliances.

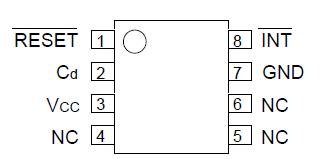

Pinout

Connection Diagram


Specifications

ltem
Symbol
conditions
Ratings
Units
Supply voltage
Vcc

8
V
Output sink voltage
Isink

4
mA
Power dissipation
Pd
440
mW
Thermal derating
K
(Ta 25°C)
4.4
mW/°C
Operating temperature
Topr

-20to75
Storage temperature
Tstg

-40to125



Description

The M62015, M62016 are semiconductor integrated circuits whose optimum use is for the detection of the rise and fall in the power supply to a microcomputer system in order to reset or release the microcomputer system.

The M62015, M62016 carry out voltage detection in 2 steps and have 2 output pins. As Bi-CMOS process and low power dissipating circuits are employed, they output optimum signals through each output pin to a system that requires RAM backup.

These ICs also support the backup mode of Mitsubishi microcomputer the M16C.
