M61529FP

Features: • 2ch Master Volume (L,R Independent Control) Main Volume : 0dB to 76dB (2dB or 4dB step), Trim Volume : 0dB to 15dB (1dB step) *Total level is fixed at 87dB, on condition that the total level of Trim and Master volume is under 87dB .• Tone Control (Bass/Mid/Treble) ±8dB (2...

product image

M61529FP Picture
See larger image
SeekIC No. : 004406446 Detail

M61529FP: Features: • 2ch Master Volume (L,R Independent Control) Main Volume : 0dB to 76dB (2dB or 4dB step), Trim Volume : 0dB to 15dB (1dB step) *Total level is fixed at 87dB, on condition that the ...

M61529FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M61529FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2ch Master Volume (L,R Independent Control)
         Main Volume : 0dB to 76dB (2dB or 4dB step),
         Trim Volume : 0dB to 15dB (1dB step)
       *Total level is fixed at 87dB, on condition that the total level of Trim and Master volume is under "87dB".
• Tone Control (Bass/Mid/Treble)
            ±8dB (2dB step)
• 4 Input Selector with Mute
• Surround Function
• Vocal Cut Function
• Bass Boost Function
• L+R Output for Spectrum Analysis Display
• L+R Output for Subwoofer
• MIC Mixing Function
• 2 REC output with mute
• Input ATT                    : 5/0/+3.5dB
• Tone Input ATT           : 0/8.2dB
• External Input ATT      : +3/0/3/6dB


Application

Mini/Micro Component, Radio-Cassette Recorder with CD Player, etc.


Pinout

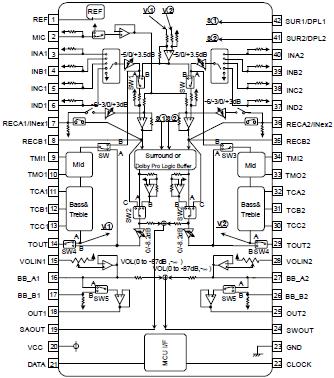

Connection Diagram


Specifications

Parameter
Symbol
 Condition
Ratings
Unit
Supply voltage Vcc
10.5
V
power dissipation Pd Ta25°C
850
mW
Thermal derating K Ta>25ºC
8.6
mW/°C
operating temperature Topr
-20to+75
°C
Storage temperature Tstg
-40to+125
°C



Description

M61529FP is the semiconductor integrated circuit for Home Audio. M61529FP includes 2ch electronic volume,Tone control, 4 Input Selector, Bass Boost, REC output and Mic Mixing. This IC is suitable for Mini Component. A difference in M61529FP and M61519FP has just changed Tone Input ATT from 0/13dB to 0/8.2dB.
