M61250BFP

Features: • No VCO coil for VIF required• Internal unregulated vocal demodulator• PLL-SPLIT SIF system for FM radio• Fsc output• ACL or ABCL can be selected• Internal horizontal oscillation probe• Internal perpendicular sawtooth wave generator• Inter...

product image

M61250BFP Picture
See larger image
SeekIC No. : 004406418 Detail

M61250BFP: Features: • No VCO coil for VIF required• Internal unregulated vocal demodulator• PLL-SPLIT SIF system for FM radio• Fsc output• ACL or ABCL can be selected• Inte...

M61250BFP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M61250BFP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• No VCO coil for VIF required
• Internal unregulated vocal demodulator
• PLL-SPLIT SIF system for FM radio
• Fsc output
• ACL or ABCL can be selected
• Internal horizontal oscillation probe
• Internal perpendicular sawtooth wave generator
• Internal self-diagnosis function
• Internal black peak hold, AFC2, killer filter
• H & V pulse output for OSD
• Internal reset circuit and clock output for microcomputer use
• Internal 5 V and 8 V regulators


Application

NTSC color television receivers


Pinout

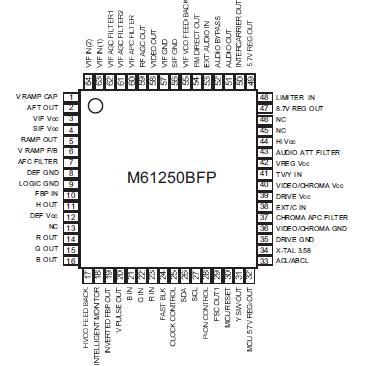

Connection Diagram


Specifications

ltem
Symbol
Rating
Unit
Power supply voltage
VCC
6.0,10.0
V
Internal power dissipation
Pd
2026
mW
Thermal derating
Kt
16.2
mW/°C
Ambient operating temperature
Topr
-20to+65
°C
Storage temperature
Tstg
-40to+125
°C



Description

The M61250BFP is a single-chip semiconductor integrated circuit that contains the signal processing for NTSC color
television.

All of the signal processing circuits of M61250BFP for video intermediate frequencies, vocal intermediate frequencies, video, color,
and polarization, as well as I2C bus control, are built in, and television sets ranging from popular-class to medium-grade sets are supported. Moreover, the M37150 8-bit microcomputer for the television and the interconnection pin are opposite each other, so that less space is required for mounting.
