M61206FP

Features: ·Various signal output for Intelligent Monitoring function·Alignment-free sound demodulator·Built-in H OSC resonator·Built-in sync sep.(auto-slicer type)·Built-in black peak hold capacitor·ACL / ABCL·Vertical count-down circuit·Built-in vertical saw tooth generator·Mute filter integrated...

product image

M61206FP Picture
SeekIC No. : 004406416 Detail

M61206FP: Features: ·Various signal output for Intelligent Monitoring function·Alignment-free sound demodulator·Built-in H OSC resonator·Built-in sync sep.(auto-slicer type)·Built-in black peak hold capacitor...

floor Price/Ceiling Price

Part Number:
M61206FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Various signal output for Intelligent Monitoring function
·Alignment-free sound demodulator
·Built-in H OSC resonator
·Built-in sync sep.(auto-slicer type)
·Built-in black peak hold capacitor
·ACL / ABCL
·Vertical count-down circuit
·Built-in vertical saw tooth generator
·Mute filter integrated
·PLL-SPLIT SIF system with FM receiving function
·H&V pulse output for OSD
·Built-in MCU reset circuit
·fsc output
·Built-in 5V(MCU,1CHIP) & 8V regulator



Application

NTSC type color TV, projector


Pinout

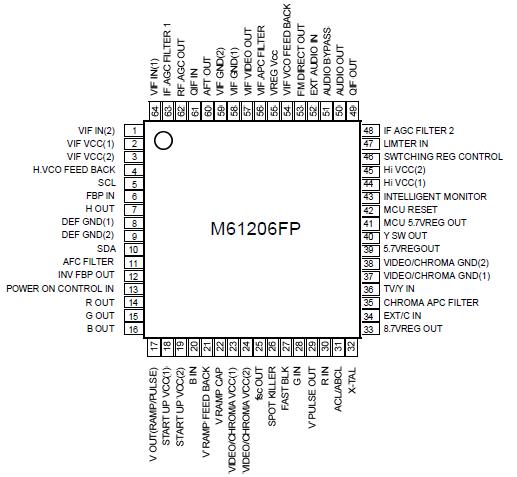

  Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
supply voltage
Vcc
6.0,10.0
V
power dissipation
Pd
1325
mW
Thermal derating
Kt
10.6
mW/°C
operating temperature
Topr
-20to+65
°C
Storage temperature
Tstg
-40to+150
°C



Description

The M61206FP is designed to provide a solution to NTSC color television system. It is an I2C bus controlled NTSC 1 chip.

The M61206FP consists of various processing blocks such as power supply, video IF, sound IF, luminance,chrominance, OSD display, interface, H and V deflection.

At each block, I2C control is possible and a total of 62 parameters can be controlled by I2C bus.
