Product Details

Description



Features:

 ·Various signal output for Intelligent Monitoring function
 ·Alignment-free sound demodulator
 ·Built-in H OSC resonator
 ·Built-in sync sep.(auto-slicer type)
 ·Built-in black peak hold capacitor
 ·ACL / ABCL
 ·Vertical count-down circuit
 ·Built-in vertical saw tooth generator
 ·Mute filter integrated
 ·PLL-SPLIT SIF system with FM recieving function
 ·H&V pulse output for OSD
 ·Built-in MCU reset circuit
 ·fsc output
 ·Built-in 5V(MCU,1CHIP) & 8V regulator


Pinout

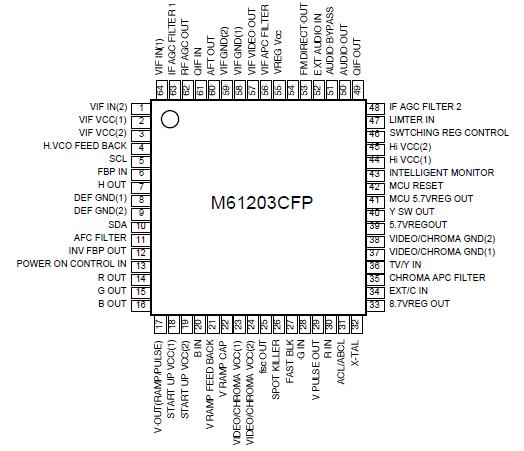

Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Power supply voltage
Vcc
6.0,10.0
V
power dissipation
Pd
1325
mW
Thermal derating
Kt
10.6
mW/°C
operating temperature
Topr
-20to+65
°C
Storage temperature
Tstg
-40to+150
°C



Description

The M61203CFP is desinged to provide a solution to NTSC color television system. It is an I2C bus controlled NTSC 1 chip.

The M61203CFP consists of various processing blocks such as power supply, video IF, sound IF, luminance,chrominance, OSD display, interface, H and V deflection.

At each block, I2C control is possible and a total of 62 parameters can be controlled by I2C bus.
