Product Details

Description



Features:

• Built-in VCO coil for intermediate frequency signal processing
• AFT adjustment is not required and flat temperature characteristics is realized
• Reference frequency of 3.58 MHz/4.00 MHz
• Image intermediate frequency US (47.75 MHz)/JP (58 .75 MHz)
• VIF/SIF mute function Coil-Less VIF/SIF


Application

TV, VCR


Pinout

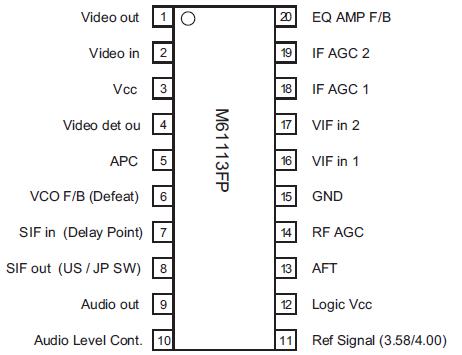

Connection Diagram


Specifications

Symbol
Parameter
Rating
Unit
Vcc
 Power supply
6.0
V
Pd
 power dissipation
969
mW
Topr1
 operating temperature
-20to+75
°C
Tstg
 Storage temperature
-40to+150
°C



Description

The M61113FP is a semiconductor integrated circuit built-in the PLL inter-carrier method VIF/SIF dedicated to NTSC.

The circuit includes the VIF amplifier, image waveform detection, APC detection, IF/RF, AGC, VCO, AFT, LOCK DET, EQ, AF amplifier, limitter, FM waveform detector circuits, and acts as a small tuner.
