M5M5W817KT - 70HI

Features: - Single 2.7~3.6V power supply- Small stand-by current: 0.1A (2.0V, ty p.)- No clocks, No ref resh- Data retention supply v oltage =2.0~3.6V- All inputs and outputs are TTL compatible.- Easy memory expansion by S1#, S2, BC1# and BC2#- Common Data I/O- Three-state outputs: OR-tie capabili...

product image

M5M5W817KT - 70HI Picture
See larger image
SeekIC No. : 004406366 Detail

M5M5W817KT - 70HI: Features: - Single 2.7~3.6V power supply- Small stand-by current: 0.1A (2.0V, ty p.)- No clocks, No ref resh- Data retention supply v oltage =2.0~3.6V- All inputs and outputs are TTL compatible.- Ea...

M5M5W817KT - 70HI Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M5W817KT - 70HI
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

- Single 2.7~3.6V power supply
- Small stand-by current: 0.1A (2.0V, ty p.)
- No clocks, No ref resh
- Data retention supply v oltage =2.0~3.6V
- All inputs and outputs are TTL compatible.
- Easy memory expansion by S1#, S2, BC1# and BC2#
- Common Data I/O
- Three-state outputs: OR-tie capability
- OE prev ents data contention in the I/O bus
- By te f unction (x8 mode) av ailable by By te# & A-1.
- Process technology: 0.18m CMOS
- Package: 52pin 10.79mm x 10.49mm TSOP [0.4mm pin pitch]

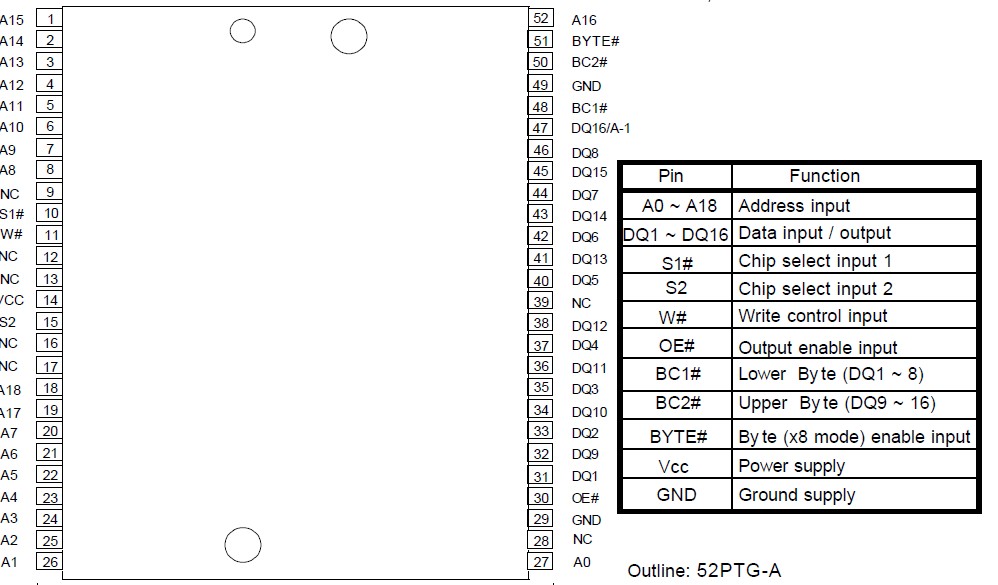

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Units
VCC
 Supply v oltage With respect to GND
- 0.3* ~ +4.6
V
VI
 Input v oltage With respect to GND
- 0.3* ~ Vcc + 0.3 (max. 4.6V)
VO
 Output v oltage

 With respect to GND
0 ~ Vcc
Pd
 Power dissipation Ta = 25°C
700
mW
Ta
 Operating temperature
-40 ~ +85
ºC
Tstg
 Storage temperature
- 65 ~ +150
ºC



Description

The M5M5W817KT is a f amily of low v oltage 8Mbit static RAMs organized as 524288-words by 16-bit / 1048576-words by 8-bit, f abricated by Mitsubishi's high-performance 0.18m CMOS technology .

The M5M5W817KT is suitable f or memory applications where a simple interf acing , battery operating and battery backup are the important design objectiv es.

The M5M5W817KT is packaged in a 52pin-TSOP with the outline of 10.79mm x 10.49mm, and pin pitch of 0.40mm. It giv es the best solution f or a compaction of mounting area as well as f lexibility of wiring pattern of printed circuit boards. The operating temperature range is -40 ~ +85°C
