M5M5V4R04J-15

Features: • Fast access time M5M5V4R04J-12 •••• 12ns(max) M5M5V4R04J-15 •••• 15ns(max)• Low power dissipation Active •••••••••• 297mW(typ) Stand by ••••&#...

product image

M5M5V4R04J-15 Picture
See larger image
SeekIC No. : 004406349 Detail

M5M5V4R04J-15: Features: • Fast access time M5M5V4R04J-12 •••• 12ns(max) M5M5V4R04J-15 •••• 15ns(max)• Low power dissipation Active •••...

M5M5V4R04J-15 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M5V4R04J-15
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast access time                 M5M5V4R04J-12 •••• 12ns(max)
                                             M5M5V4R04J-15 •••• 15ns(max)
• Low power dissipation       Active •••••••••• 297mW(typ)
                                             Stand by ••••••• 3.3mW(typ)
• Single +3.3V power supply
• Fully static operation : No clocks, No refresh
• Common data I/O
• Easy memory expansion by S
• Three-state outputs : OR-tie capability
• OE prevents data contention in the I/O bus
• Directly TTL compatible : All inputs and outputs

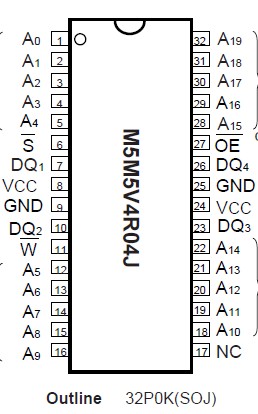

Pinout

Connection Diagram


Specifications

Symbol

Parameter

 Conditions Ratings Unit

Vcc

Supply voltage

With respect to GND

-2.0* ~ 4.6

V

VI

Input voltage

-2.0* ~ VCC+0.5

V

VO

Output voltage

-2.0* ~ VCC+0.5

V

Pd

Power dissipation

Ta=25

1000

mW

Topr

Operating temperature



0 ~ 70



Tstg(bias)

Storage temperature (bias)



-10 ~ 85



Tstg

Storage temperature



-65 ~ 150






Description

The M5M5V4R04J is a family of 1048576-word by 4-bit static RAMs, fabricated with the high performance CMOS silicon gate process and designed for high speed application.

The M5M5V4R04J is offered in a 32-pin plastic small outline Jlead package(SOJ).

These device operate on a single 3.3V supply, and are directly TTL compatible. They include a power down feature as well.
