Product Details

Description



Features:

• Single +2.7~+3.6V power supply
• Small stand-by current: 0.3µA(3V,typ.)
• No clocks, No refresh
• Data retention supply voltage=2.0V to 3.6V
• All inputs and outputs are TTL compatible.
• Easy memory expansion by S
• Common Data I/O
• Three-state outputs: OR-tie capability
• OE prevents data contention in the I/O bus
• Process technology: 0.25µm CMOS
• Package:
   M5M5V408BFP: 32 pin 525 mil SOP
   M5M5V408BTP/RT: 32 PIN 400mil TSOP(ll)
   M5M5V408BKV/KR: 32 pin 8mm x13.4mm STSOP


Pinout

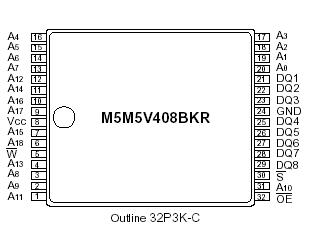

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
Vcc Supply voltage With respect to GND -0.5* ~ +4.6 V
VI Input voltage With respect to GND -0.5* ~ Vcc + 0.5
VO Output Voltage With respect to GND 0 ~ Vcc
Pd Power Dissipation Ta=25°C 700 mW
Ta Operating Temperature Standard         (-L, -H) 0 ~ +70 °C
W-version       (-LW, -HW) -20 ~ +85
I-version         (-LI, -HI) -40 ~ +85
Tstg Storage Temperature   -65 ~150 °C



Description

The M5M5V408B is a family of low voltage 4-Mbit static RAMs organized as 524,288-words by 8-bit, fabricated by Mitsubishi's highperformance 0.25µm CMOS technology.

The M5M5V408B is suitable for memory applications where a simple interfacing , battery operating and battery backup are the important design objectives.

M5M5V408B is packaged in 32-pin plastic SOP, 32-pin plastic TSOP and 32-pin 8mm x 13.4mm STSOP packages. Two types of TSOPs and two types of STSOPs are available, M5M5V408BTP (normal-lead-bend TSOP), M5M5V408BRT (reverse-lead-bend TSOP), M5M5V408BKV (normal-lead-bend STSOP) and M5M5V408BKR (reverse-lead-bend STSOP). These two types TSOPs and two types STSOPs are suitable for a surface mounting on double-sided printed circuit boards.

From the point of operating temperature, the family is divided into three versions; "Standard", "W-version", and "I-version". Those are summarized in the part name table below.
