M5M5V32R16J

Features: ·Fast access time M5M5V32R16J,TP-10 10ns(max)·M5M5V32R16J,TP-12 12ns(max)·M5M5V32R16J,TP-15 15ns(max)·Low power dissipation Active 297mW(typ)·Stand by 0.33mW(typ)·Single +3.3V power supply·Fully static operation : No clocks, No refresh·Common data I/O·Easy memory expansion by /S·Three-st...

product image

M5M5V32R16J Picture
See larger image
SeekIC No. : 004406335 Detail

M5M5V32R16J: Features: ·Fast access time M5M5V32R16J,TP-10 10ns(max)·M5M5V32R16J,TP-12 12ns(max)·M5M5V32R16J,TP-15 15ns(max)·Low power dissipation Active 297mW(typ)·Stand by 0.33mW(typ)·Single +3.3V power supply...

M5M5V32R16J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M5V32R16J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Fast access time M5M5V32R16J,TP-10 10ns(max)
·M5M5V32R16J,TP-12 12ns(max)
·M5M5V32R16J,TP-15 15ns(max)
·Low power dissipation Active 297mW(typ)
·Stand by 0.33mW(typ)
·Single +3.3V power supply
·Fully static operation : No clocks, No refresh
·Common data I/O
·Easy memory expansion by /S
·Three-state outputs : OR-tie capability
·OE prevents data contention in the I/O bus
·Directly TTL compatible : All inputs and outputs
·Separate control of lower and upper bytes by /LB and /UB


Application

High-speed memory system

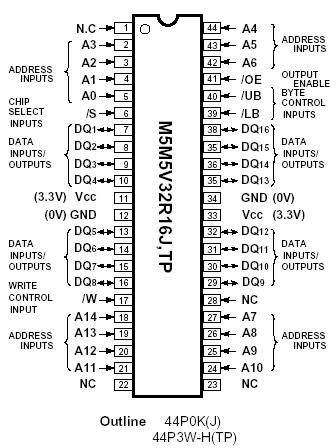

Pinout

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
Vcc Supply voltage With respect to GND -2.0* ~ 4.6 V
VI Input voltage -2.0* ~ Vcc+0.5 V
VO Output voltage -2.0* ~ Vcc V
Pd Power dissipation Ta=25 1000 mW
Topr Operating temperature   0 ~ 70
Tstg(bias) Storage temperature(bias)   -10 ~ 85
Tstg Storage temperature   -65 ~ 150
* Pulse width 20ns, In case of DC: - 0.5V


Description

The M5M5V32R16 is a family of 32768-word by 16-bit static RAMs, fabricated with the high performance CMOS process and designed for high speed application. These devices operate on a single 3.3V supply, and are directly TTL compatible.

They include a power down feature as well. In write and read cycles, the lower and upper bytes are able to be controled either togethe or separately by /LB and /UB.
