Product Details

Description



Features:

• Fully registered inputs and outputs for pipelined operation
• Fast clock speed: 200 MHz
• Fast access time: 3.2 ns
• Single 2.5V -5% and +5% power supply VDD
• Separate VDDQ for 2.5V or 1.8V I/O
• Individual byte write (BWa# - BWd#) controls may be tied LOW
• Single Read/Write control pin (W#)
• CKE# pin to enable clock and suspend operations
• Internally self-timed, registers outputs eliminate the need to control G#
• Snooze mode (ZZ) for power down
• Linear or Interleaved Burst Modes
• Three chip enables for simple depth expansion


Application

High-end networking products that require high bandwidth, such as switches and routers.

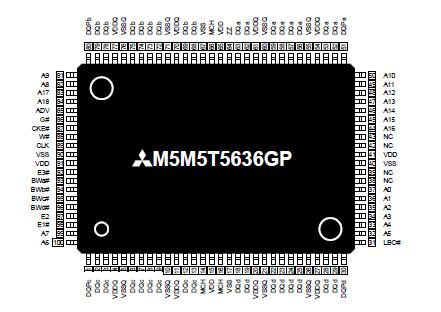

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VDD
 Power Supply Voltage
With respect to VSS
-1.0*~3.6
V
VDDQ
 I/O Buffer Power Supply Voltage
-1.0*~3.6
V
VI
 Input Voltage
-1.0~VDDQ+1.0**
V
VO
 Output Voltage
-1.0~VDDQ+1.0**
V
PD
 Maximum Power Dissipation (VDD)
945
mW
TOPR
 Operating Temperature
0~70
°C
TSTG(bias)
 Storage Temperature(bias)
-10~85
°C
TSTG
 Storage Temperature
-65~150
°C


Note16.* This is 1.0V when pulse width£2ns, and 0.5V in case of DC.
** This is 1.0V~VDDQ+1.0V when pulse width2ns, and 0.5V~VDDQ+0.5V in case of DC.




Description

The M5M5T5636GP is a family of 18M bit synchronous SRAMs organized as 524288-words by 36-bit. It is designed to eliminate dead bus cycles when turning the bus around between reads and writes, or writes and reads. Mitsubishi's SRAMs are fabricated with high performance, low power CMOS technology, providing greater reliability. M5M5T5636GP operates on 2.5V power/ 1.8V I/O supply or a single 2.5V power supply and are 2.5V CMOS compatible.
