M5M564R16DJ

Features: •Fast access time M5M564R16DJ,TP-10 ... 10ns(max)M5M564R16DJ,TP-12 ... 12ns(max)M5M564R16DJ,TP-15 ... 15ns(max)•Low power dissipation Active .................. 363mW(typ)•Single +3.3V power supply•Fully static operation : No clocks, No refresh•Common data I/...

product image

M5M564R16DJ Picture
See larger image
SeekIC No. : 004406316 Detail

M5M564R16DJ: Features: •Fast access time M5M564R16DJ,TP-10 ... 10ns(max)M5M564R16DJ,TP-12 ... 12ns(max)M5M564R16DJ,TP-15 ... 15ns(max)•Low power dissipation Active .................. 363mW(typ)•...

M5M564R16DJ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M564R16DJ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Fast access time M5M564R16DJ,TP-10 ... 10ns(max) M5M564R16DJ,TP-12 ... 12ns(max) M5M564R16DJ,TP-15 ... 15ns(max)
•Low power dissipation Active .................. 363mW(typ)
•Single +3.3V power supply
•Fully static operation : No clocks, No refresh
•Common data I/O
•Easy memory expansion by S
•Three-state outputs : OR-tie capability
•OE prevents data contention in the I/O bus
•Directly TTL compatible : All inputs and outputs
•Separate control of lower and upper bytes by LB and UB


Application

High-speed memory system


Pinout

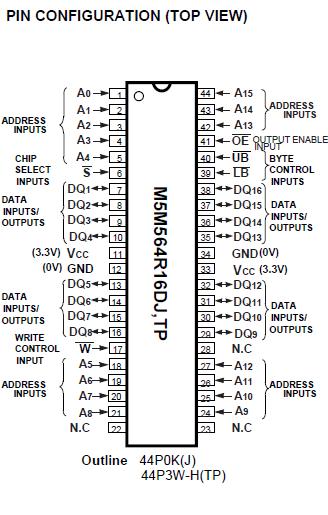

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
VCC Supply voltage With respect to GND - 2.0* ~ 4.6 V
VI Input voltage - 2.0*~ Vcc+0.5 V
VO Output voltage - 2.0 ~ Vcc V
PD Power dissipation Ta=25°C 1000 mW
TOPR Operating temperature   0 ~ 70 °C
Tstg(bias) Storage temperature(bias)   - 10 ~ 85 °C
Tstg Storage temperature   - 65 ~ 150 °C



Description

The M5M564R16D is a family of 65536-word by 16-bit static RAMs, fabricated with the high performance CMOS process and designed for high speed application. These devices operate on a single 3.3V supply, and are directly TTL compatible.

They include a power down feature as well. In write and read cycles, the lower and upper bytes are able to be controled either togethe or separately by LB and UB.
