M5M54R16AJ-12

Features: *Fast access time M5M54R16AJ,ATP-10 ... 10ns(max) M5M54R16AJ,ATP-12 ... 12ns(max) M5M54R16AJ,ATP-15 ... 15ns(max) *Single +3.3V power supply*Fully static operation : No clocks, No refresh*Common data I/O*Easy memory expansion byS*Three-state outputs : OR-tie capability*OE prevents data c...

product image

M5M54R16AJ-12 Picture
See larger image
SeekIC No. : 004406314 Detail

M5M54R16AJ-12: Features: *Fast access time M5M54R16AJ,ATP-10 ... 10ns(max) M5M54R16AJ,ATP-12 ... 12ns(max) M5M54R16AJ,ATP-15 ... 15ns(max) *Single +3.3V power supply*Fully static operation : No clocks, No refresh*...

M5M54R16AJ-12 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M54R16AJ-12
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Fast access time       M5M54R16AJ,ATP-10 ... 10ns(max)
                                   M5M54R16AJ,ATP-12 ... 12ns(max)
                                   M5M54R16AJ,ATP-15 ... 15ns(max)

*Single +3.3V power supply
*Fully static operation : No clocks, No refresh
*Common data I/O
*Easy memory expansion by S
*Three-state outputs : OR-tie capability
*OE prevents data contention in the I/O bus
*Directly TTL compatible : All inputs and outputs
*Separate control of lower and upper bytes by  LB and  UB


Pinout

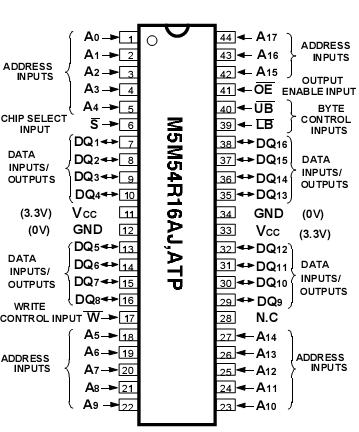

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
Vcc Supply voltage With respect to GND - 2.0* ~ 4.6 V
VI Input voltage - 2.0* ~ Vcc+0.5 V
VO Output voltage
- 2.0* ~ Vcc		 V
Pd Power dissipation Ta=25 1000 mW
Topr Operating temperature   0 ~ 70
Tstg(bias) Storage temperature(bias)   -10 ~ 85
Tstg Storage temperature   -65 ~ 150



Description

  The M5M54R16A is a family of 262144-word by 16-bit static RAMs, fabricated with the high performance CMOS process and designed for high  speed application. These devices operate on a single 3.3V supply, and are directly TTL  compatible.

  They  include  a  power down  feature as well.  In write and read cycles,  the  lower  and  upper  bytes  are  able  to  be controled  either  togethe  or  separately  by  LB and  UB.
