M5M54R01J-12

Features: * Fast access time M5M54R01J-12 **** 12ns(max) M5M54R01J-15 **** 15ns(max)* Low power dissipation Active ********** 450mW(typ) Stand by ********** 5mW(typ)* Single +5V power supply* Fully static operation : No clocks, No refresh* Test mode is available* Easy memory expansion by S* Thre...

product image

M5M54R01J-12 Picture
See larger image
SeekIC No. : 004406305 Detail

M5M54R01J-12: Features: * Fast access time M5M54R01J-12 **** 12ns(max) M5M54R01J-15 **** 15ns(max)* Low power dissipation Active ********** 450mW(typ) Stand by ********** 5mW(typ)* Single +5V power supply* Full...

M5M54R01J-12 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M54R01J-12
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Fast access time                 M5M54R01J-12 **** 12ns(max)
                                             M5M54R01J-15  **** 15ns(max)
* Low power dissipation      Active  ********** 450mW(typ)
                                            Stand by  ********** 5mW(typ)
* Single +5V power supply
*  Fully static operation : No clocks, No refresh
*  Test mode is available
* Easy memory expansion by S
*  Three-state outputs : OR-tie capability
* OE prevents data contention in the I/O bus
*  Directly TTL compatible : All inputs and outputs

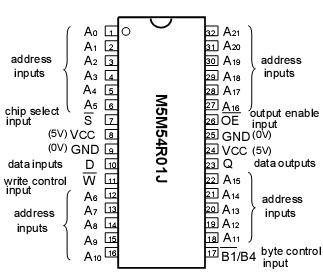

Pinout

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
Vcc Supply voltage With respect to GND -3.5* ~ 7 V
VI Input voltage -3.5* ~ VCC+0.3 V
VO Output voltage -3.5* ~ VCC+0.3 V
Pd Power dissipation Ta=25 1000 mW
Topr Operating temperature   0 ~ 70
Tstg(bias) Storage temperature(bias)   -10 ~ 85
Tstg Storage temperature   -65 ~ 150



Description

  The M5M54R01J is a family of 4194304-word by 1-bit static RAMs, fabricated with the high performance CMOS silicon gate process and designed for high speed application.

  The M5M54R01J is offered in a 32-pin plastic small outline J-lead package(SOJ).

  These device operate on a single 5V supply, and are directly TTL compatible. They include a power down feature as well.
