Product Details

Description



Features:

•Fast access time M5M54R01AJ-12 ... 12ns(max)
                             M5M54R01AJ-15 ... 15ns(max)
•Single +3.3V power supply
•Fully static operation : No clocks, No refresh
•Easy memory expansion by S
•Three-state outputs : OR-tie capability
•OE prevents data contention in the I/O bus
•Directly TTL compatible : All inputs and outputs


Application

High-speed memory units

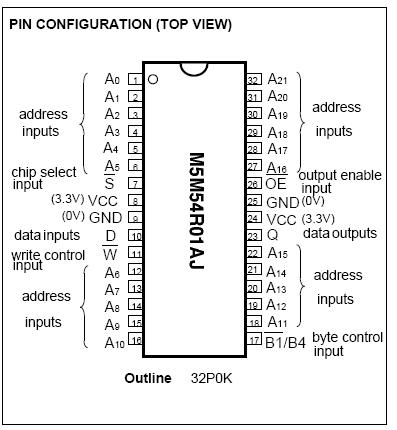

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc
Supply voltage
With respect to GND
- 2.0* ~ 4.6
V
VI
Input voltage
- 2.0*~ VCC+0.5
V
VO
Output voltage
- 2.0* ~ VCC
V
Pd
Power dissipation
Ta=25°C
1000
mW
Topr
Operating temperature
0 ~ 70
°C
T stg(bias)
Storage temperature(bias)
- 10 ~ 85
°C
Tstg
Storage temperature
- 65 ~ 150
°C



Description

The M5M54R01AJ is a family of 4194304-word by 1-bit static RAMs, fabricated with the high performance CMOS silicon gate process and designed for high speed application.These devices operate on a single 3.3V supply, and are directly TTL compatible. They include a power down feature as well.
