Features:

•Single +5V power supply
• Small stand-by current: 0.4A(3V,typ.)
• No clocks, No refresh
• Data retention supply voltage=2.0V to 5.5V
• All inputs and outputs are TTL compatible.
• Easy memory expansion by S
• Common Data I/O
• Three-state outputs: OR-tie capability
• OE prevents data contention in the I/O bus
• Process technology: 0.25m CMOS
• Package:
   M5M5408BFP: 32 pin 525 mil SOP
   M5M5408BTP/RT: 32 pin 400 mil TSOP(ll)
   M5M5408BKV/KR: 32 pin 8mm x 13.4mm STSOP


Pinout

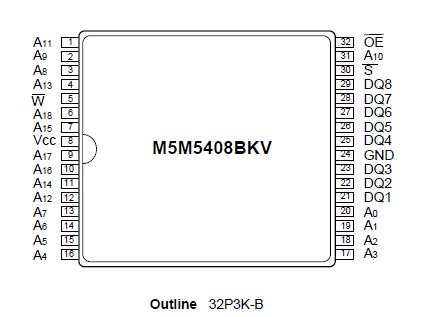

Connection Diagram


Specifications

Symbol
 Parameter Conditions
Ratings
Unit
VCC
 Supply voltage
With respect to GND
-0.3* ~ +7
V
V I
 Input voltage
With respect to GND
-0.3* ~ Vcc + 0.3
VO
 Output voltage
With respect to GND
0 ~ Vcc
Pd
 Power dissipation
Ta=25°C
700
mW
Ta
 Operating
temperature
Standard
(-L, -H)
0 ~ +70
°C
W-version
(-LW, -HW)
-20 ~ +85
I-version
(-LI, -HI)
-40 ~ +85
Tstg
 Storage temperature
65 ~ 150
°C



Description

The M5M5408B is a family of 4-Mbit static RAMs organized as 524,288-words by 8-bit, fabricated by Mitsubishi's highperformance 0.25m CMOS technology.

The M5M5408B is suitable for memory applications where a simple interfacing , battery operating and battery backup are the important design objectives.

M5M5408B is packaged in 32-pin plastic SOP, 32-pin plastic TSOP and 32-pin 8mm x 13.4mm STSOP packages. Two types of TSOPs and two types of STSOPs are available , M5M5408BTP (normal-lead-bend TSOP) , M5M5408BRT (reverse-lead-bend TSOP) , M5M5408BKV (normal-lead-bend STSOP) and M5M5408BKR (reverse-lead-bend STSOP). These two types TSOPs and two types STSOPs are suitable for a surface mounting on double-sided printed circuit boards.

From the point of operating temperature, the family is divided into three versions; "Standard", "W-version", and "I-version". Those are summarized in the part name table below.
