M5M5408BKR

Features: •Single +5V power supply• Small stand-by current: 0.4A(3V,typ.)• No clocks, No refresh• Data retention supply voltage=2.0V to 5.5V• All inputs and outputs are TTL compatible.• Easy memory expansion by S• Common Data I/O• Three-state outputs...

product image

M5M5408BKR Picture
See larger image
SeekIC No. : 004406299 Detail

M5M5408BKR: Features: •Single +5V power supply• Small stand-by current: 0.4A(3V,typ.)• No clocks, No refresh• Data retention supply voltage=2.0V to 5.5V• All inputs and outputs are...

M5M5408BKR Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M5408BKR
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Single +5V power supply
• Small stand-by current: 0.4A(3V,typ.)
• No clocks, No refresh
• Data retention supply voltage=2.0V to 5.5V
• All inputs and outputs are TTL compatible.
• Easy memory expansion by S
• Common Data I/O
• Three-state outputs: OR-tie capability
• OE prevents data contention in the I/O bus
• Process technology: 0.25m CMOS
• Package:
   M5M5408BFP: 32 pin 525 mil SOP
   M5M5408BTP/RT: 32 pin 400 mil TSOP(ll)
   M5M5408BKV/KR: 32 pin 8mm x 13.4mm STSOP


Pinout

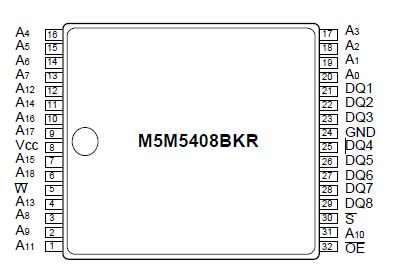

Connection Diagram


Specifications

Symbol
 Parameter Conditions
Ratings
Unit
VCC
 Supply voltage
With respect to GND
-0.3* ~ +7
V
V I
 Input voltage
With respect to GND
-0.3* ~ Vcc + 0.3
VO
 Output voltage
With respect to GND
0 ~ Vcc
Pd
 Power dissipation
Ta=25°C
700
mW
Ta
 Operating
temperature
Standard
(-L, -H)
0 ~ +70
°C
W-version
(-LW, -HW)
-20 ~ +85
I-version
(-LI, -HI)
-40 ~ +85
Tstg
 Storage temperature
65 ~ 150
°C



Description

The M5M5408B is a family of 4-Mbit static RAMs organized as 524,288-words by 8-bit, fabricated by Mitsubishi's highperformance 0.25m CMOS technology.

The M5M5408B is suitable for memory applications where a simple interfacing , battery operating and battery backup are the important design objectives.

M5M5408B is packaged in 32-pin plastic SOP, 32-pin plastic TSOP and 32-pin 8mm x 13.4mm STSOP packages. Two types of TSOPs and two types of STSOPs are available , M5M5408BTP (normal-lead-bend TSOP) , M5M5408BRT (reverse-lead-bend TSOP) , M5M5408BKV (normal-lead-bend STSOP) and M5M5408BKR (reverse-lead-bend STSOP). These two types TSOPs and two types STSOPs are suitable for a surface mounting on double-sided printed circuit boards.

From the point of operating temperature, the family is divided into three versions; "Standard", "W-version", and "I-version". Those are summarized in the part name table below.
