Features:

Single  +5V  power  supply
No  clocks, no  refresh
Data-Hold on +2.0V power supply
Directly  TTL  compatible : all inputs and outputs
Three-state  outputs : OR-tie  capability
/OE  prevents  data  contention  in  the  I/O  bus
Common  Data  I/O
Battery backup capability
Low stand-by current``````````0.05A(typ.)


Application

Small capacity memory units


Pinout

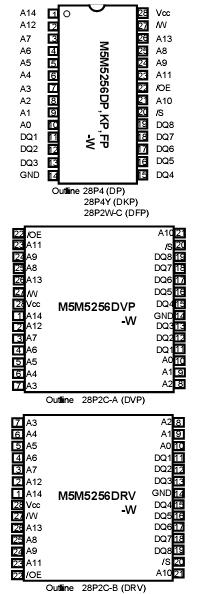

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
Vcc Supply voltage With respect to GND -0.3*~7.0 V
VI Input voltage -0.3*~Vcc+0.3
(Max 7.0)		 V
VO Output voltage 0~Vcc V
Pd Power dissipation Ta=25°C 700 mW
Topr Operating temperature   -20~70 °C
Tstg Storage temperature   -65~150 °C



Description

The M5M5256DP,KP,FP,VP,RV is 262,144-bit CMOS static RAMs organized as 32,768-words by 8-bits which is fabricated using high-performance 3 polysilicon CMOS technology. The use ofresistive load NMOS cells and CMOS periphery results in a high density and low power static RAM.  Stand-by  current is small enough for battery back-up application. It is ideal for the memory systems which require simple interface.

Especially the M5M5256DVP,RV are packaged in a 28-pin thin small outline package.Two types of devices are available, M5M5256DVP(normal lead bend type package), M5M5256DRV(reverse lead bend type package). Using both types of devices, it becomes very easy to design a printed circuit board.
