Features:

`Organization 524,288 word x 16bit
                          ..............................1,048,576 word x 8 bit.
`Supply voltage ................................ VCC = 3.3V±0.3V
`Access time 80/100/120ns (Max)
`Power Dissipation
                                    Read .........................108 mW (Max.)
                      Program/Erase ........................144 mW (Max.)
                          Standby .............................0.72 mW (Max.)
          Deep power down mode ........................3.3W (typ.)
`Auto program
                              Program Time ......................7.5ms (typ.)
                                 Program Unit ........................128word
`Auto Erase
               Erase time ..........................................50 ms (typ.)
               Erase Unit
                     Boot Block........................ 8Kword / 16Kbyte x 1
                   Parameter Block ...................4Kword / 8Kbyte x 2
                         Main Block ..................16Kword / 32Kbyte x 1
                                     ......................32Kword / 64Kbyte x 15
`Program/Erase cycles 100Kcycles
`Boot Block
                M5M29FB800...................................... Bottom Boot
                M5M29FT800 ............................................Top Boot
`Other Functions
              Software Command Control
              Selective Block Lock
              Erase Suspend/Resume
              Program Suspend/Resume
              Status Register Read
              Sleep
`Package
            48-Lead, 12mmx 20mm TSOP (type-I)
            44-Lead SOP


Application

·Code Storage PC BIOS
·Digital Cellular Phone/Telecommunication


Pinout

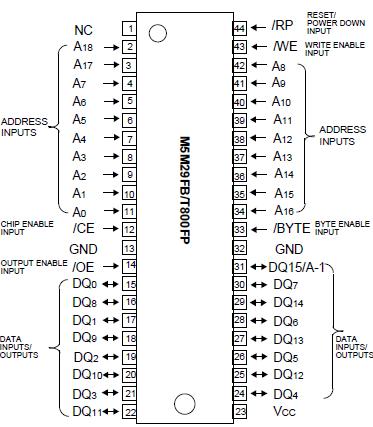

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC VCC Voltage With Respect to Ground
-0.2to4.6
V
VI1 All input or output voltage except Vcc,A9,/RP1)
-0.6to4.6
V
VI2 A9,RP supply voltage
-0.6to14.0
V
Ta Ambient Temperature
0to70
°C
Tbs Temperature under Bias
-10to80
°C
Tstg Storage temperature
-65to125
°C
Iout Output Short Circuit Current
0to100
mA
1) Minimum DC voltage is -0.5V on input/output pins. During transitions, this level may undershoot to -2.0V for periods <20ns. Maximum DC voltage on input/output pins is VCC+0.5V which, during transitions, may overshoot to VCC+1.5V for periods <20ns.


Description

The MITSUBISHI M5M29FB/T800FP, VP, RV are 3.3V-only high speed 8,388,608-bit CMOS boot block Flash Memories suitable for mobile and personal computing, and communication products. The M5M29FB/T800FP, VP, RV are fabricated by CMOS technology for the peripheral circuits and DINOR(Divided bit line NOR) architecture for the memory cells, and are available in 44pin SOP or 48pin TSOP(I).
