M54HCT74

Features: `HIGH SPEED: tPD = 12 ns (TYP.) at VCC = 4.5V`LOW POWER DISSIPATION: ICC = 1mA(MAX.) at TA=25°C`COMPATIBLE WITH TTL OUTPUTS : VIH = 2V (MIN.) VIL = 0.8V (MAX)`BALANCED PROPAGATION DELAYS: tPLH tPHL`SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 4mA (MIN)`BALANCEDPROPAGATION DELAYS tPLH = t...

product image

M54HCT74 Picture
See larger image
SeekIC No. : 004405997 Detail

M54HCT74: Features: `HIGH SPEED: tPD = 12 ns (TYP.) at VCC = 4.5V`LOW POWER DISSIPATION: ICC = 1mA(MAX.) at TA=25°C`COMPATIBLE WITH TTL OUTPUTS : VIH = 2V (MIN.) VIL = 0.8V (MAX)`BALANCED PROPAGATION DELAYS: ...

M54HCT74 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54HCT74
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`HIGH SPEED:
  tPD = 12 ns (TYP.) at VCC = 4.5V
`LOW POWER DISSIPATION:
  ICC = 1mA(MAX.) at TA=25°C
`COMPATIBLE WITH TTL OUTPUTS :
  VIH = 2V (MIN.) VIL = 0.8V (MAX)
`BALANCED PROPAGATION DELAYS:
  tPLH tPHL
`SYMMETRICAL OUTPUT IMPEDANCE:
  |IOH| = IOL = 4mA (MIN)
`BALANCEDPROPAGATION DELAYS
  tPLH = tPHL
`PIN AND FUNCTION COMPATIBLE WITH 54/74LS74


Pinout

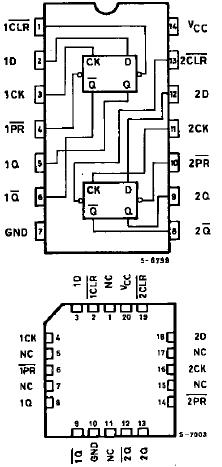

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to +7 V
VI DC Input Voltage -0.5 to VCC + 0.5 V
VO DC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current ± 20 mA
IOK DC Output Diode Current ± 20 mA
IO DC Output Current ± 25 mA
ICC or IGND DC VCC or Ground Current ± 50 mA
PD Power Dissipation 500(*) mW
Tstg Storage Temperature -65 to +150 °C
TL Lead Temperature (10 sec) 300 °C
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operationunder these conditions is not implied
(*) 500mW at 65 °C; derate to 300mW by 10mW/°C from 65°C to 85°C


Description

The M54/74HCT74 is a high speed CMOS DUALD TYPE FLOP WITH PRESET AND CLEAR fabricated in silicon gate C2MOS technology. M54/74HCT74 has the same high speed performance of LSTTL combined with trueCMOSlow power consumption. Asignal on the DINPUT is transferred to the QOUTPUTduring the positive going transition of the clock pulse. CLEAR and PRESET are independent of the clock and accomplished by alow on the appropriate input.

M54/74HCT74 All inputs are equipped with protection circuits against static discharge and transient excess voltage. This integrated circuit has input and output characteristics that are fully compatible with 54/74 LSTTL logic families. M54/74HCT devices are designed to directly interface HSC2MOS systems with TTL and NMOScomponents. They are also plug in replacements for LSTTL devices giving a reduction of power consumption.
