M54HCT393

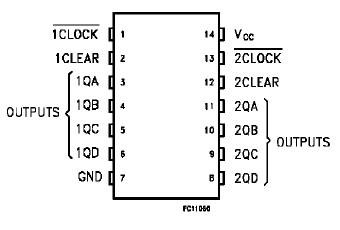

The M54/74HCT393 is a high speed CMOS DUAL BINARY COUNTER fabricated in silicon gate C²MOS technology. It has the same high speed performance of LSTTL combined with true COMS low power consumption.

This counter circuit M54/74HCT393 contains independent ripple carry counters and two 4-bit ripple carry binary counters, which can be cascated to create a single divide by 256 counter.

Each 4-bit counter M54/74HCT393 is incremented on the high to low transition (negative edge) of the clock input,and each has an independent clear input. When clear is set to high all four bits of each counter are set to a low level. This enables count truncation and allows the implementation of divide by N counter configurations.

This integrated circuit M54/74HCT393 has input and output characteristics that are fully compatible with 54/74 LSTTL logic families. M54/74HCT devices are designed to directly interface HSC²MOS systems with TTL and NMOS components. They are also plug in replacements for LSTTL devices giving a reduction of power consumption.

M54/74HCT393 All inputs are equipped with protection circuits against static discharge and transient excess voltage.
