M54HCT30

Features: `HIGH SPEED: tPD = 12 ns (TYP.) at VCC = 4.5V`LOW POWER DISSIPATION: ICC = 1mA(MAX.) at TA=25°C`COMPATIBLE WITH TTL OUTPUTS : VIH = 2V (MIN.) VIL = 0.8V (MAX)`BALANCED PROPAGATION DELAYS: tPLH tPHL`SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 4mA (MIN)`PIN AND FUNCTION COMPATIBLE WITH 54...

product image

M54HCT30 Picture
See larger image
SeekIC No. : 004405982 Detail

M54HCT30: Features: `HIGH SPEED: tPD = 12 ns (TYP.) at VCC = 4.5V`LOW POWER DISSIPATION: ICC = 1mA(MAX.) at TA=25°C`COMPATIBLE WITH TTL OUTPUTS : VIH = 2V (MIN.) VIL = 0.8V (MAX)`BALANCED PROPAGATION DELAYS: ...

M54HCT30 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54HCT30
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`HIGH SPEED:
  tPD = 12 ns (TYP.) at VCC = 4.5V
`LOW POWER DISSIPATION:
  ICC = 1mA(MAX.) at TA=25°C
`COMPATIBLE WITH TTL OUTPUTS :
  VIH = 2V (MIN.) VIL = 0.8V (MAX)
`BALANCED PROPAGATION DELAYS:
  tPLH tPHL
`SYMMETRICAL OUTPUT IMPEDANCE:
  |IOH| = IOL = 4mA (MIN)
`PIN AND FUNCTION COMPATIBLE WITH 54/74LS30


Pinout

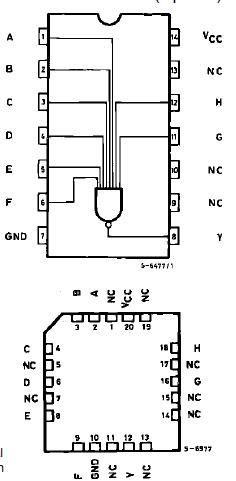

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to +7 V
VI DC Input Voltage -0.5 to VCC + 0.5 V
VO DC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current ± 20 mA
IOK DC Output Diode Current ± 20 mA
IO DC Output Current ± 25 mA
ICC or IGND DC VCC or Ground Current ± 50 mA
PD Power Dissipation 500(*) mW
Tstg Storage Temperature -65 to +150 °C
TL Lead Temperature (10 sec) 300 °C
AbsoluteMaximumRatings are those values beyond whichdamage tothe device may occur. Functional operation under these condition isnotimplied.
(*) 500 mW: 65 derate to 300mWby 10mW/: 65 to85


Description

The M54/74HCT30 is a high speedCMOS 8-INPUT NAND GATE fabricated with silicon gate C2MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption.

The internal circuit M54/74HCT30 is composed of 5 stages including buffer output, which gives high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge and transient excess voltage.This integrated circuit has input and output characteristics that are fully compatible with 54/74 LSTTL logic families. M54/74HCT devices are designed to directly interface HSC2MOS systems with TTL and NMOS components. They are also plug in replacements for LSTTL devices giving a reduction of power consumption.
